Thomas & Betts 656ETP-K0320DRGSG2-2 Window-Op Connector
- MPN: 656ETP-K0320DRGSG2-2
- UPC: 783786423385
- PPN: T-B-656ETP-K0320DRGSG2-2
CAD
$1448.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

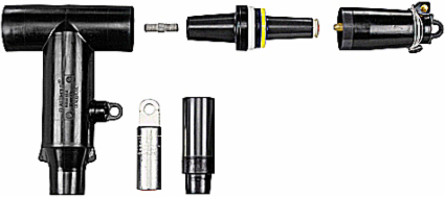

600 Amp, Dead Break, Elbow Connector, Test and Ground Connector Kit withCapacitive Test Point, 15KV, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 450 /Solid 500/550. 200ECS-G2 Jacket Seal and Grounding Kit Included.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Capacitive Test Point, Insulated Cap
- Standard
- ANSI/IEEE Standard 386
- Connection
- Crimped Compression Lug
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 15kV
- Insulation
- Yes, EPDM Rubber
IGCC4586 Electrical connector assembly
TypeWindow-Op Connector
Application600 Amps, 15kV
SizeCable Insulation Diameter 1.090 inch to 1.310 inch.
Conductor RangeConductor Size kcmil Compressed/Stranded 450 or Compacted/Solid 500/550.
ColorBlack
Amperage Rating600 Amps
Temperature Rating-40 degrees to +65 degrees Celsius
Packaging
- Outer Quantity
- 1
- Weight Uom
- 3.5 lbs. Each
Outer Dimensions (inches)13.5x9.25x8.5
