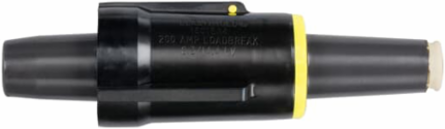

Thomas & Betts 1601EA4 15KV EXTENDED BSHG INSERT
- MPN: 1601EA4
- UPC: 783786662968
- PPN: T-B-1601EA4
- UNSPSC: 26121630
CAD
$553.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV 200 Amp, Loadbreak Extended Bushing Insert, Includes internal torquing feature using 200AT Assembly Tool.
Specifications
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Additional Information
| Application | Fully rated with a 15kV class, 200 Amp load break bushing interface. The load break bushing insert fits a standard ANSI bushing well interface and becomes the apparatus bushing interface for elbow connections. |
|---|---|
| Effective Date | 19980115 |
| Product Name | PRIMARY CABLE ACC. 200 SEP CON |
| Size | 11.00 inches (279.4 mm) long, 3.00 inches (76.2 mm) Diameter |
| Standards | ANSI/IEEE Standard 386 |
| Brand / Label | Elastimold |
|---|---|
| Material | EPDM Rubber |
| Product Type | Bushing Insert |
| Special Functions | 15kV, 200 Amp Loadbreak Rated. Longer than the standard 1601A4 Bushing Insert by 3.75 inches (95mm). Includes Hex-Broach for Torque Installation. Peroxide-cured Insulation and Jacket. Provision for Ground Wire Connection. |
| Temperature Range | -40 to +65 °C |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
