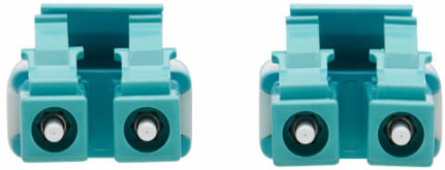

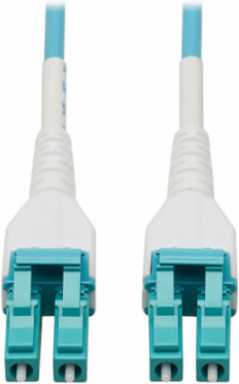

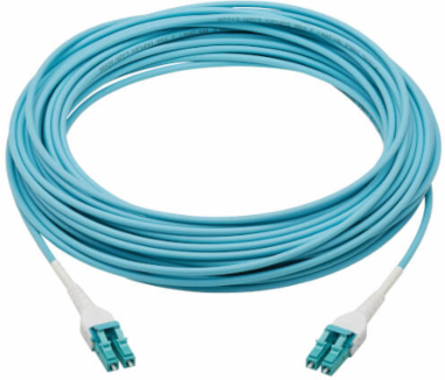

Tripp Lite N82115MAQAR Armored Fiber Optic Cable, Duplex Multimode 50/125 OM4, LC/LC, LSZH, Aqua, 15 m
- MPN: N82115MAQAR
- UPC: 037332265715
- PPN: TRP-N821-15M-AQ-AR
CAD
$154.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
100G Duplex Multimode 50/125 OM4 Armored Fiber Optic Cable (LC/LC Duplex M/M), LSZH, Aqua, 15 m (49.2 ft.)
Documentation & Downloads
Specifications
Dimensions
| Cable Length | 15 m (49.2 ft) |
|---|---|
| Cable Outer Diameter | 3.0 mm |
| Core Diameter | 50 |
| Minimum Bend Radius | ≤30mm |
| Side B - Connector 1 | LC Duplex (Male) |
| Number of Fibers | 2 |
|---|---|
| Clad Diameter | 125 |
| Primary Coating Diameter | 550 |
| Side A - Connector 1 | LC Duplex (Male) |
| Optical Port | LC |
Material
| Technology | Multimode |
|---|---|
| Material of Construction | Outer Jacket: PVC (LSZH Rating); Inner Flexible Steel Tube: SUS204 (Armored) |
| Connector Color | Aqua; White |
| Cable Jacket Rating | OFNR |
| Endface Polish | PC |
|---|---|
| Cable Jacket Color | Aqua |
| Cable Jacket Material | LSZH |
| Armored Cable | Yes |
Performance
| Network Compatibility | 1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps |
|---|---|
| Attenuation @ 850NM | 3.0 dB/km |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Wavelength | 1300nm; 850nm |
|---|---|
| Attenuation @ 1300NM | 1.0 dB/km |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Humidity Range | 5% to 85% RH, Non-Condensing |
Compliance
| Product Warranty Period | Lifetime limited warranty |
|---|
