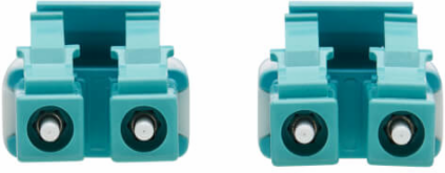

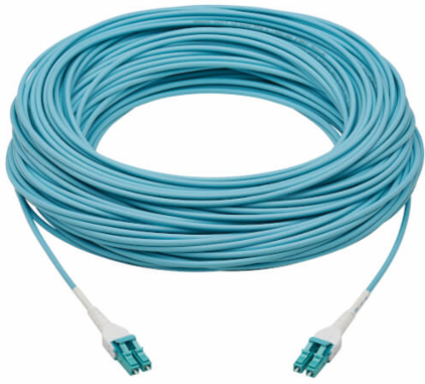

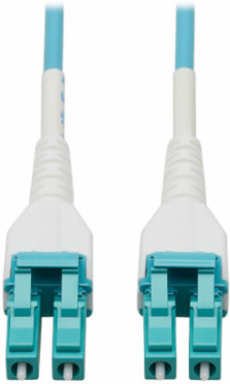

Tripp Lite N82150MAQAR Armored Fiber Optic Cable, Duplex Multimode 50/125 OM4, LC/LC, LSZH, Aqua, 50 m
- MPN: N82150MAQAR
- UPC: 037332264367
- PPN: TRP-N821-50M-AQ-AR
CAD
$388.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
100G Duplex Multimode 50/125 OM4 Armored Fiber Optic Cable (LC/LC Duplex M/M), LSZH, Aqua, 50 m (164 ft.)
Documentation & Downloads
Specifications
Compliance
- Product Warranty Period
- Lifetime limited warranty
Performance
- Network Compatibility
- 1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps
- Attenuation @ 850NM
- 3.0 dB/km
- Operating Temperature Range
- -4° to 140°F (-20° to 60°C)
- Operating Humidity Range
- 5% to 85% RH, Non-Condensing
Wavelength1300nm; 850nm
Attenuation @ 1300NM1.0 dB/km
Storage Temperature Range-4° to 140°F (-20° to 60°C)
Storage Humidity Range5% to 85% RH, Non-Condensing
Material
- Technology
- Multimode
- Material of Construction
- Outer Jacket: PVC (LSZH Rating); Inner Flexible Steel Tube: SUS204 (Armored)
- Connector Color
- Aqua; White
- Cable Jacket Rating
- OFNR
Endface PolishPC
Cable Jacket ColorAqua
Cable Jacket MaterialLSZH
Armored CableYes
Dimensions
- Cable Length
- 50 m (164 ft)
- Cable Outer Diameter
- 3.0 mm
- Core Diameter
- 50
- Minimum Bend Radius
- ≤30mm
- Side B - Connector 1
- LC Duplex (Male)
Number of Fibers2
Clad Diameter125
Primary Coating Diameter550
Side A - Connector 1LC Duplex (Male)
Optical PortLC
