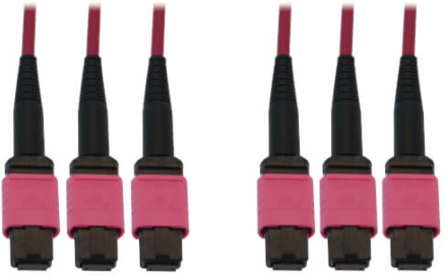

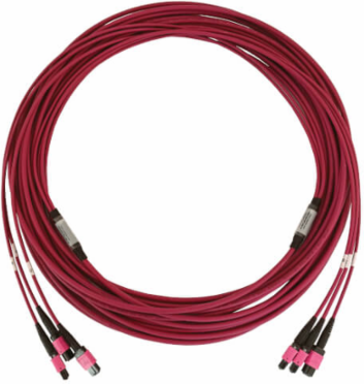

Tripp Lite N858B15M3X8MG Fiber Optic Cable, 40/100/400G Multimode OM4, 3x8F MTP/MPO-PC (F/F), LSZH, Magenta, 15 m
- MPN: N858B15M3X8MG
- UPC: 037332272966
- PPN: TRP-N858B-15M-3X8MG
CAD
$1508.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
40/100/400G Multimode 50/125 OM4 Fiber Optic Cable (3x8F MTP/MPO-PC F/F), LSZH, Magenta, 15 m (49.2 ft.)
Documentation & Downloads
Specifications
Dimensions
- Side A - Connector 1
- 12F MPO (Female)
- Optical Port
- MPO/MTP
- Cable Length
- 15M (49.2 ft)
- Cable Outer Diameter
- 4.5 mm
- Core Diameter
- 50.0
Side B - Connector 124F MPO (Female)
Number of Fibers24
Minimum Bend Radius20 mm (Dynamic); 10 mm (Static)
Clad Diameter125.0
Primary Coating Diameter245.0
Material
- Technology
- Multimode
- Polarity
- Type B (cross)
- Connector Color
- Black; Magenta
- Cable Jacket Rating
- OFNR
Endface PolishPC
Cable Jacket ColorMagenta
Cable Jacket MaterialLSZH
BreakoutYes
Performance
- Network Compatibility
- 40 Gbps; 100 Gbps; 400 Gbps
- Attenuation @ 850NM
- 3.5 dB/km
- Operating Temperature Range
- 14° to 140°F (-10° to 60°C)
- Operating Humidity Range
- 5% to 85% RH, Non-Condensing
Wavelength1300nm; 850nm
Attenuation @ 1300NM1.5 dB/km
Storage Temperature Range14° to 140°F (-10° to 60°C)
Storage Humidity Range5% to 85% RH, Non-Condensing
Compliance
- Product Warranty Period
- Lifetime limited warranty
