Leviton W216-C4 16 Amp International Configuration Panel Mounting Inlet, IP66/67, 100-130 Volt
Leviton W216-C4 16 Amp International Configuration Panel Mounting Inlet, IP66/67, 100-130 Volt
- MPN: W216-C4
- UPC: 078477677445
- PPN: LEV-W216-C4
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$157.41/ EA
Description

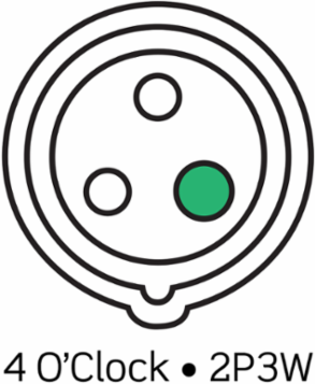

16 Amp, 100-130 Volt, 2P+E (2P, 3W), Clock Position 4, IEC/EN 60309-1 & 60309-2, International Configuration Connector, Industrial Grade, IP66/67, Watertight - YELLOW
Specifications
Standards and Certifications
- CE
- Marked
- NOM Certified
- Yes
IEC Rating60309-1 and 60309-2
RETIE CertifiedYes
Material Specifications
- Contacts
- Nickel Plated Brass
HousingHalogen-free engineering polymer
Mechanical Specifications
- Cord Grip Range (in)
- .315 - .590
Terminal Accom.#16 - #14 AWG
Specifications
- Country of Origin
- Slovakia
RoHS CompliantTrue
Product Features
- Color
- Yellow
- Device Type
- Connector
ConfigurationInternational
Environmental Specifications
- IK Rating
- IK08
- Operating Temperature
- -25°C to 40°C
IP RatingIP66/IP67
Electrical Specifications
- Amperage
- 16 A
- Pole
- 2
- Wire
- 3
Frequency50/60Hz
Voltage100/130 VAC
Downloads
