Leviton W332-C6 32 Amp 380-415 Volt Industrial Grade Panel Mount Inlet, IP66/IP67, Nickel Plated Brass
Leviton W332-C6 32 Amp 380-415 Volt Industrial Grade Panel Mount Inlet, IP66/IP67, Nickel Plated Brass
- MPN: W332-C6
- UPC: 078477677612
- PPN: LEV-W332-C6
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$215.87/ EA
Description

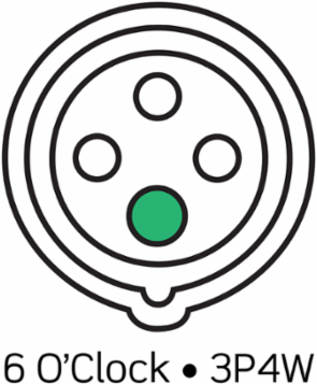

32 Amp, 380-415 Volt, 3P+E (3P, 4W), Clock Position 6, IEC/EN 60309-1 & 60309-2, International Configuration Connector, Industrial Grade, IP66/67, Watertight - RED
Specifications
Standards and Certifications
- CE
- Marked
- NOM Certified
- Yes
IEC Rating60309-1 and 60309-2
RETIE CertifiedYes
Material Specifications
- Contacts
- Nickel Plated Brass
HousingHalogen-free engineering polymer
Mechanical Specifications
- Cord Grip Range (in)
- .453 - .827
Terminal Accom.14-10 AWG
Specifications
- Country of Origin
- Slovakia
RoHS CompliantTrue
Product Features
- Color
- Red
- Device Type
- Connector
ConfigurationInternational
Environmental Specifications
- IK Rating
- IK08
- Operating Temperature
- -25°C to 40°C
IP RatingIP66/IP67
Electrical Specifications
- Amperage
- 32 A
- Pole
- 3
- Wire
- 4
Frequency50/60Hz
Voltage380-415 VAC
Downloads
