Leviton S432-P6 32 Amp International Configuration Panel Mounting Inlet, 346-415 Volt, IP44, Red
- MPN: S432-P6
- UPC: 078477675557
- PPN: LEV-S432-P6
CAD
$210.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

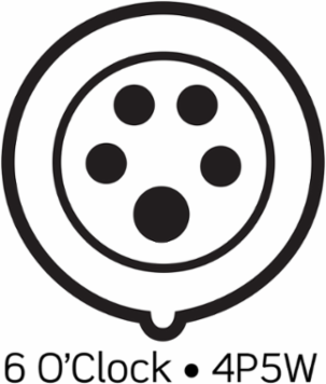

32 Amp, 346-415 Volt, 3P+N+E (4P, 5W), Clock Position 6, IEC/EN 60309-1 & 60309-2, International Configuration Plug, Industrial Grade, IP44, Splashproof - RED
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Slovakia
RoHS CompliantTrue
Standards and Certifications
- CE
- Marked
- NOM Certified
- Yes
IEC Rating60309-1 and 60309-2
RETIE CertifiedYes
Material Specifications
- Contacts
- Nickel Plated Brass
HousingHalogen-free engineering polymer
Mechanical Specifications
- Cord Grip Range (in)
- .453 - .827
- Torque Range
- Terminal screws 7in-lbs|Cable Clamp 66.4 in-lbs
Terminal Accom.14-10 AWG
Product Features
- Color
- Red
- Device Type
- Plug
ConfigurationInternational
Environmental Specifications
- IK Rating
- IK08
- Operating Temperature
- -25°C to 40°C
IP RatingIP44
Electrical Specifications
- Amperage
- 32 A
- Pole
- 4
- Wire
- 5
Frequency50/60Hz
Voltage346-415 VAC
