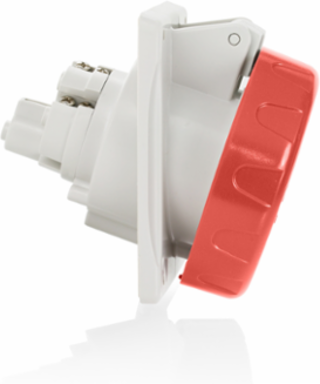

Leviton W316-R6 16 Amp International Configuration Panel Mounting Inlet, 380-415 Volt, IP66/IP67
- MPN: W316-R6
- UPC: 078477678978
- PPN: LEV-W316-R6
CAD
$158.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

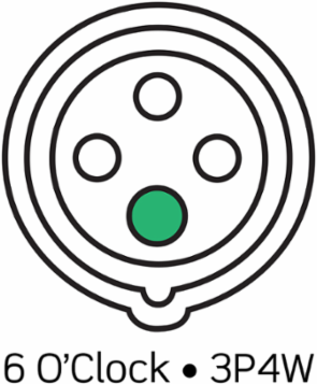

16 Amp, 380-415 Volt, 3P+E (3P, 4W), Clock Position 6, IEC/EN 60309-1 & 60309-2, International Configuration Panel Mounting Socket Outlet, Industrial Grade, IP66/67, Watertight - RED
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Slovakia
RoHS CompliantTrue
Standards and Certifications
- CE
- Marked
- NOM Certified
- Yes
IEC Rating60309-1 and 60309-2
RETIE CertifiedYes
Material Specifications
- Contacts
- Nickel Plated Brass
HousingHalogen-free engineering polymer
Mechanical Specifications
- Terminal Accom.
- #16 - #12 AWG
Torque RangeTerminal screws 7 in lbs, mounting screws 10.6 in lbs
Product Features
- Color
- Red
- Device Type
- Receptacle
ConfigurationInternational
Environmental Specifications
- IK Rating
- IK08
- Operating Temperature
- -25°C to 40°C
IP RatingIP66/IP67
Electrical Specifications
- Amperage
- 16 A
- Pole
- 3
- Wire
- 4
Frequency50/60Hz
Voltage380-415 VAC
