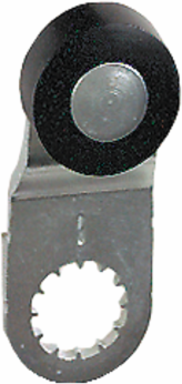

Telemecanique Sensors ZCY18 Limit switch lever, Limit switches XC Standard, ZCY, thermoplastic roller
- MPN: ZCY18
- PPN: TES-ZCY18
CAD
$5.50
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This ZCY standard lever has a thermoplastic roller lever with track 20/36mm. It can be matched with any head from the XCKD, XCKP and XCKT ranges.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Type Of Approach
- lateral approach
- Tracks
- 20/36 mm XCMD || 24/40 mm XCKD || 24/40 mm XCKP || 24/40 mm XCKT
- Type Of Operator
- roller lever spring return thermoplastic
- Product Compatibility
- XCKP || XCKD || XCMD || XCKT
Movement Of Operating Headrotary
Range Of ProductTelemecanique Limit switches XC Standard
Associated HeadZCE05 || ZCE01
Product Or Component Typelimit switch lever
Device Short NameZCY
Complementary
- Switch Actuation
- by 30° cam
Positive Openingwith
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Ambient Air Temperature For Operation
- -25-70 °C
Environmental Characteristicstandard environment
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI110612EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP110612EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
