Telemecanique Sensors ZCKY15 Limit switch lever, Limit switches XC Standard, thermoplastic roller ZCK Y for
- MPN: ZCKY15
- PPN: TES-ZCKY15
- UNSPSC: 39122213
CAD
$18.50
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

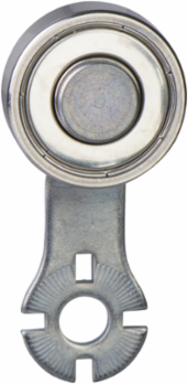

This product is part of the XC Standard range, an offer of limit switches. This limit switch lever has a spring return thermoplastic roller lever operator and provides a lateral approach with the positive opening operation. The switch lever with a rotary movement and switching actuation of 30° cam. This roller lever is made of thermoplastic. It is compatible with the XCKM and XCKL limit switch bodies. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
Documentation & Downloads
Specifications
Key Specifications
| Series Name | standard format |
|---|---|
| Type Of Approach | lateral approach |
| Associated Head | ZCKE05 |
| Product Or Component Type | limit switch lever |
| Device Short Name | ZCKY |
| Movement Of Operating Head | rotary |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Type Of Operator | roller lever spring return thermoplastic -) |
| Product Compatibility | XCKJ |
Complementary
| Switch Actuation | by 30° cam |
|---|
| Positive Opening | with |
|---|
Environment
| Ambient Air Temperature For Storage | 10-120 °C high temperature |
|---|---|
| Ambient Air Temperature For Operation | 10-120 °C high temperature |
| Environmental Characteristic | high temperature |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
