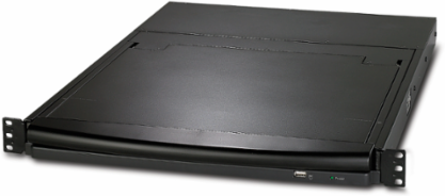

APC AP5816 17 Inch Rack LCD Console with 16 Port KVM Switch, 1U, 30.86 lb, 120/240 V
- MPN: AP5816
- UPC: 731304278818
- PPN: APC-AP5816
CAD
$4194.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

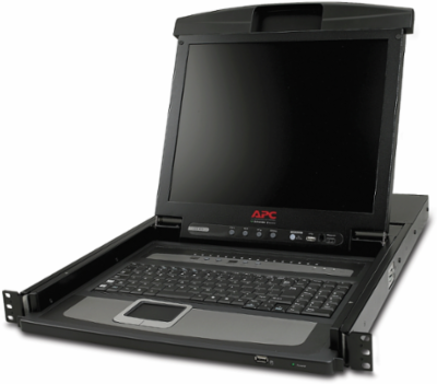

The AP5816 is a 17-inch Rack LCD Console with an integrated 16-port analog KVM switch. It occupies 1U of rack space and features a 17-inch LCD display with a resolution of 1280 x 1024. The console includes a full-size keyboard, touchpad, and multiple KVM switching options such as hotkey, OSD, and pushbutton. It supports various platforms, including Windows, Sun, Unix, and Linux, and includes multiple input connections such as IEC 60320 C14 and NEMA 5-15 power cords.
Features
- Troubleshoot servers and diagnose problems in lieu of a working operating system with POST and BIOS-level access to servers.
- Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user's manual for specific cascading capabilities.
- Combines a 17" LCD console with a 16-port KVM switch, saving rack space

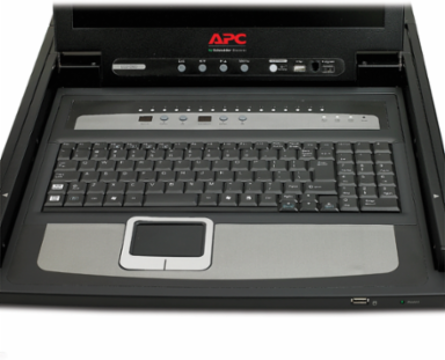

- Integrated keyboard and touchpad for convenient management
- Compatible with Windows, Sun, Unix, and Linux
- Allows adding or removing servers without powering off the switch
Documentation & Downloads
Specifications
Additional
| Input Voltage | 120 V, 240 V |
|---|---|
| Depth | 27.99 in (71.1 cm) |
| Weight | 30.86 lb (14 kg) |
| Input Connection Type | IEC 60320 C14 |
| Mount Position | front |
| RoHS | Compliant with Exemptions |
| REACH Free of SVHC | Yes |
| Mercury Free | Yes |
| Height | 1.69 in (4.3 cm) |
|---|---|
| Width | 19.02 in (48.3 cm) |
| Rack Height | 1U |
| Cord Length | 6 ft (1.83 m) |
| Approvals | cUL Listed, C-tick, CE, Industry Canada, KCC, UL Listed, VDE, TAA |
| REACH | Free of Substances of Very High Concern above the threshold |
| Lead Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including Diisononyl phthalate (DINP), known to cause cancer |
