Tripp Lite B093-008-2E4U 8-Port Console Server with Dual GbE NIC, 4Gb Flash and 4 USB Ports
Tripp Lite B093-008-2E4U 8-Port Console Server with Dual GbE NIC, 4Gb Flash and 4 USB Ports
- MPN: B093-008-2E4U
- UPC: 037332209306
- PPN: TRP-B093-008-2E4U
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2204.46/ EA
Description

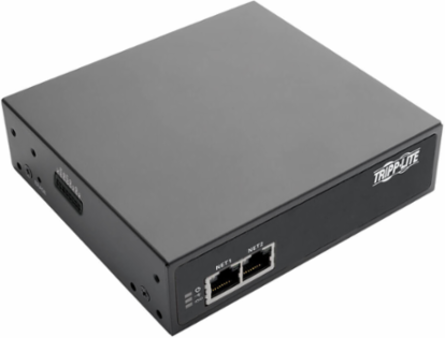

8-Port Console Server with Dual GbE NIC, 4Gb Flash and 4 USB Ports
Features
- Manage routers, UPS systems and other serial-based equipment from anywhere at any time 24/7
- Validated to meet FIPS 140-2 standards to ensure utmost protection of private data

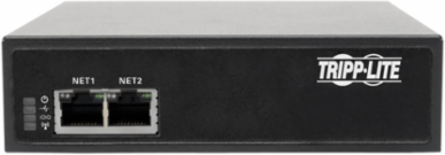

- Dual Gigabit Ethernet ports for primary network connection and automatic failover
- Designed for standard Cat5e/6 patch cable when connecting to Cisco devices

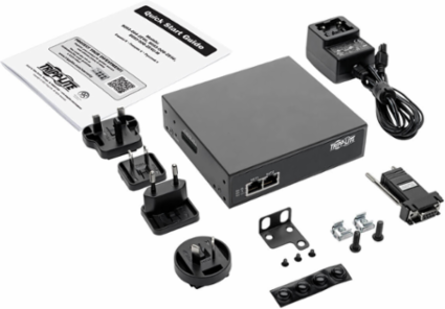

- Easy installation on desktop or 19 in. racks using included mounting hardware
- 4-year limited warranty
- Access All Your Serial and Network Devices from Anywhere in the World
- Simple and Flexible Accessibility
- Connect an External Modem for Out-of-Band Access
- Router/Gateway
- The Utmost in Security to Keep Your Sensitive Data Private
- PowerMan PDU and UPS Support

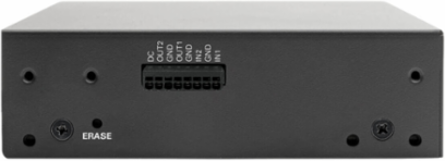

- USB Console and Digital I/O (DIO) Ports
- Compact Design for Convenient Mounting
- TAA-Compliant for GSA Schedule Purchases
- 4-Year Warranty and Environmentally Responsible Design
Specifications
Features & Specifications
- Port Selection
- GUI
- Driver Required
- No
- Common Access Card (CAC) Support
- No
USB SpecificationUSB 2.0 (up to 480 Mbps)
Authentication SupportedRADIUS; LDAP; TACACS
TechnologySerial (RS232)
Certifications
- Certifications
- Tested to CE, FCC, UL, TUV, C-Tick, RoHS, REACH

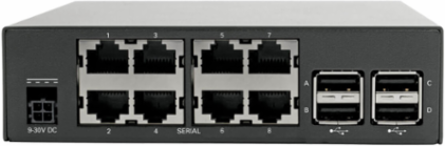

Connections
- Ports
- 8
- Side B - Connector 1
- (8) RJ45 (FEMALE); (4) USB A (FEMALE)
Side A - Connector 1(2) RJ45 (FEMALE)
Physical
- Color
- Black
- Rackmountable
- Yes
- Shipping Weight (lbs.)
- 2.60
- Unit Packaging Type
- Box
Material of ConstructionMetal
Shipping Dimensions (hwd / in.)4.10 x 7.10 x 9.10
Unit Dimensions (hwd / in.)1.4 x 5.1 x 4.7
Unit Weight (lbs.)1.3
User Interface, Alerts & Controls
- LED Indicators
- 7 LED's for Power, Heartbeat-Firmware Running, Serial Connectivity and Network Ports
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 127; 200; 208; 220; 230; 240
- External Power Supply Output Specs (V / A)
- 12V / 1.25A
- External Power Supply Cord Length (m.)
- 1.2
- External Power Supply Certifications
- CE; FCC; UL; TUV; PSE; C-Tick; GS; RoHS; CB
External Power Supply Input Specs (V / Hz / A)100-240V/ 50/60Hz / 0.4A
External Power Supply Cord Length (ft.)4
External Power Supply Plug(s)NEMA 1-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia
Communications
- IP Remote Access
- Yes
- IEEE Standards Supported
- 802.3; 802.3ab; 802.3ad
Network Speed1Gbps
Environmental
- Operating Temperature Range
- -13 to 140 F (-25 to 60 C)
- Relative Humidity
- 5% to 90% RH, Non-Condensing
- Power Consumption (Watts)
- 11.5
Storage Temperature Range-40 to 167 F (-40 to 75 C)
BTUs39.2 BTU/Hr
Overview
- UPC Code
- 037332209306
Multi-UserYes
Warranty
- Product Warranty Period (Worldwide)
- 4-year limited warranty
