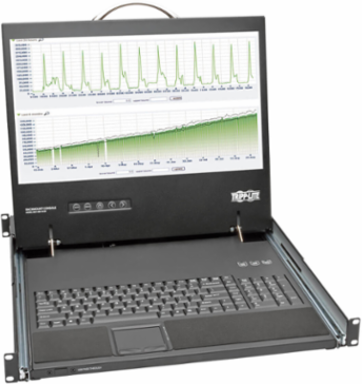

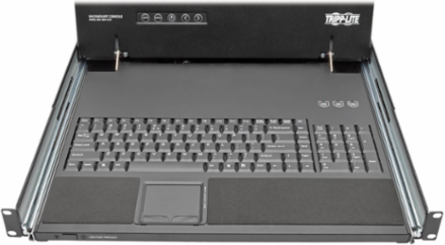

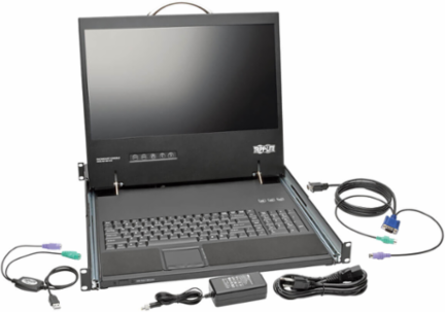

Tripp Lite B021-000-19-SH 1U Rack-Mount Console with 19-in. LCD, Short-Depth; TAA Compliant
Tripp Lite B021-000-19-SH 1U Rack-Mount Console with 19-in. LCD, Short-Depth; TAA Compliant
- MPN: B021-000-19-SH
- UPC: 037332143853
- PPN: TRP-B021-000-19-SH
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2676.84/ EA
Description
1U Rack-Mount Console with 19-in. LCD, Short-Depth; TAA Compliant
Features
- Short-depth console mounts in cabinets with a minimum depth of 19"
- Designed for use with KVMs or Servers that have PS/2 or USB connectors
- 19" LCD Screen with max native 1366 x 768 resolution
- Auto Sensing External Power Supply (Input: 100-240V, 50/60Hz, 1.5A)
- TAA compliant for GSA Schedule purchases
- 1-year limited warranty
Specifications
Features & Specifications
- Number of Users
- 1
- Max Supported Video Resolution
- 1366 x 768 @ 60Hz
- Driver Required
- No
- Technology
- PS/2; USB; VGA/SVGA
NIAP-Certified SecureNo
USB SpecificationUSB 2.0 (up to 480 Mbps)
Cat5 KVM SwitchNo
Certifications
- Certifications
- FCC Part 15 Class A, CE, EN 60950-1, RoHS, REACH
Connections
- Ports
- 1
- Side A - Connector 1
- HD15 (FEMALE)
- Side B - Connector 1
- USB A (FEMALE)
- Computer Monitor Interface
- VGA
PC/Server ConnectionsPS/2; USB; VGA
Side A - Connector 2USB A (FEMALE)
Computer Keyboard and Mouse InterfacePS/2; USB
(Eng) Built-In Console
- Console Screen Size (inches)
- 19
Console Screen Aspect Ratio16:9
Physical
- Color
- Black
- Rackmountable
- Yes
- Shipping Weight (lbs.)
- 34.30
- Unit Packaging Type
- Box
Material of ConstructionSECC (Steel, Electrogalvanized, Cold Rolled, Coil)
Shipping Dimensions (hwd / in.)5.90 x 23.10 x 24.17
Unit Dimensions (hwd / in.)1.73 x 18.8 x 27.2
Unit Weight (lbs.)27.13
Product Overview
- Product Overview
- 1U 19" KVM Console Short-Body
User Interface, Alerts & Controls
- LED Indicators
- Green (CAPS LOCK, SCROLL LOCK, NUM LOCK)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 127; 200; 208; 220; 230; 240
- External Power Supply Output Specs (V / A)
- 12V / 2.5 A
- External Power Supply DC Barrel Connector Specs
- OD: 5.5 x 2.5 x 16.5mm, Positive Pin, Negative Sleeve
- External Power Supply Certifications
- CE; FCC; UL; cUL; TUV; CCC; GS; BSMI; RoHS
External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 1.5A
External Power Supply Cord Length (ft.)5
External Power Supply Plug(s)IEC-320-C14
Communications
- IP Remote Access
- No
Environmental
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- Relative Humidity
- 0% to 80% RH, Non-Condensing
- Power Consumption (Watts)
- (Line Mode) 30W / (Standby Mode) 5W
Storage Temperature Range-4 to 140 F (-20 to 60 C)
BTUs(Line Mode) 102 BTU/Hr / (Standby Mode) 17.1 BTU/Hr
Overview
- UPC Code
- 037332143853
AC AdapterInput: 100-240V, 50/60Hz, 1.5A
Warranty
- Product Warranty Period (Worldwide)
- 1-year limited warranty
Downloads
