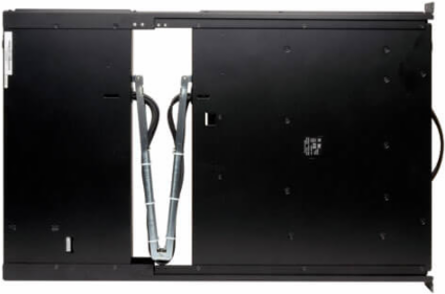

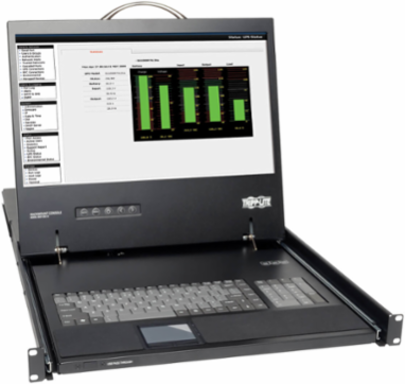

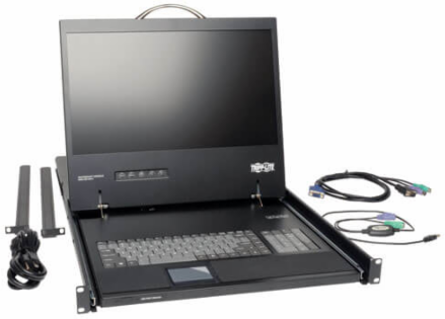

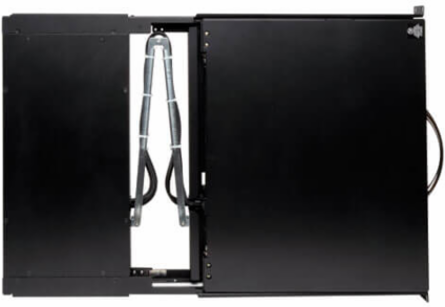

Tripp Lite B021-000-19 1U Rack-Mount Console with 19 Inch LCD, 1366 x 768 Resolution, USB/PS/2 Interface
Tripp Lite B021-000-19 1U Rack-Mount Console with 19 Inch LCD, 1366 x 768 Resolution, USB/PS/2 Interface
- MPN: B021-000-19
- UPC: 037332152657
- PPN: TRP-B021-000-19
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2108.08/ EA
Features
- Control an entire network in just 1U of rack space; includes keyboard, 19" LCD screen and touch pad
- Features a USB 2.0 pass-through port for connection of a USB peripheral, such as a flash drive, CAC card reader, etc.
- Connects to a PS/2 or USB server or KVM switch
- Supports resolutions up to 1366 X 768
- Rackmountable in 19" system rack (1U), from 27" to 42" deep
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 1-year limited warranty
Specifications
- Max Supported Video Resolution
- 1366 x 768 @ 60Hz
- Input Frequency
- 50/60 Hz
- Power Consumption
- 30W (Line Mode), 5W (Standby Mode)
- Console Screen Aspect Ratio
- 16:9
- Power Input Receptacle
- IEC-320-C14
- Storage Temperature Range
- -4 to 140 F (-20 to 60 C)
- Rackmountable
- Yes
- Dimensions
- 1.7 x 17.7 x 28.4 in (H x W x D)
- USB Specification
- USB 2.0 (up to 480 Mbps)
- Color
- Black
- Certifications
- UL 60950-1, CAN/CSA, FCC Part 15 Class A, CE, IEC 60950-1, RoHS, REACH, TAA
Input Voltage100-240 VAC (100;110;120;127;200;208;220;230;240)
Input Current1.2A @ 120V, 0.7A @ 230V
Console Screen Size19 in
MaterialSECC (Steel, Electrogalvanized, Cold rolled, Coil)
Operating Temperature Range32 to 104 F (0 to 40 C)
Relative Humidity20% to 90% RH, Non-Condensing
Weight31 lbs (14.06 kg)
InterfaceUSB, PS/2, VGA
Number of Users1
LED IndicatorsGreen (CAPS LOCK, SCROLL LOCK, NUM LOCK)
