Tripp Lite N822L01MMG Fiber Optic Cable, Duplex Multimode 50/125 OM4, CS-PC/LC-PC, LSZH, Magenta, 1 m
- MPN: N822L01MMG
- UPC: 037332258083
- PPN: TRP-N822L-01M-MG
CAD
$62.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

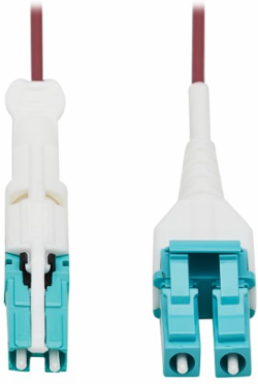

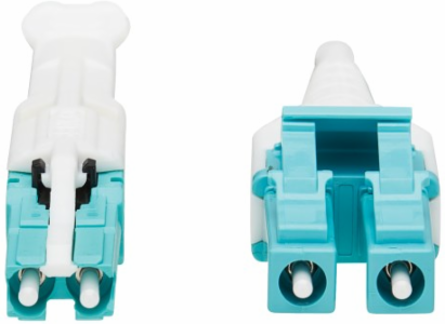

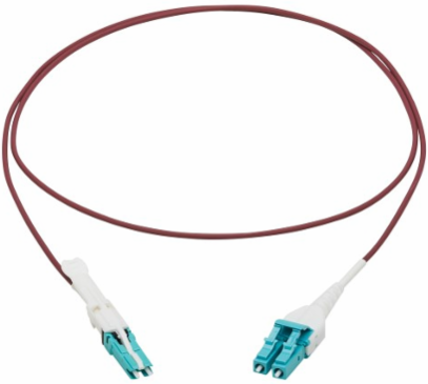

400G Duplex Multimode 50/125 OM4 Fiber Optic Cable (CS-PC/LC-PC), Round LSZH Jacket, Magenta, 1 m
Documentation & Downloads
Specifications
Material
- Technology
- Multimode
- Cable Jacket Color
- Magenta
- Cable Jacket Material
- LSZH
Endface PolishPC
Connector ColorWhite; Aqua
Cable Jacket RatingOFNR
Performance
- Network Compatibility
- 1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps
- Attenuation @ 850NM
- 3.0 dB/km
- Storage Temperature Range
- -4° to 140°F (-20° to 60°C)
- Storage Humidity Range
- 35% to 65% RH, Non-Condensing
Transmission Distance100M @ 850NM Wavelength
Operating Temperature Range-4° to 140°F (-20° to 60°C)
Operating Humidity Range5% to 85% RH, Non-Condensing
Dimensions
- Cable Length
- 1 m (3.3 ft)
- Clad Diameter
- 125
- Primary Coating Diameter
- 600
- Side A - Connector 1
- CS Duplex (Male)
- Push/Pull Tabs
- Yes
Number of Fibers2
Core Diameter50
Minimum Bend Radius20 mm (Dynamic); 10 mm (Static)
Side B - Connector 1LC Duplex (Male)
Compliance
- Product Warranty Period
- Lifetime limited warranty
