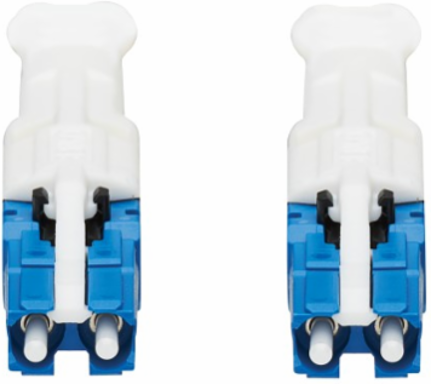

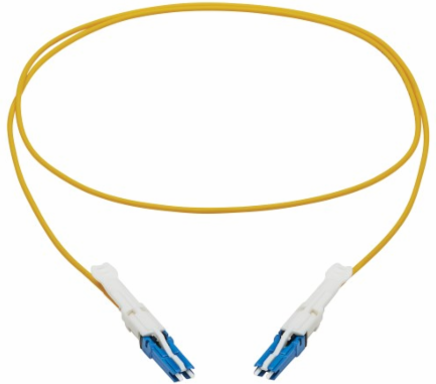

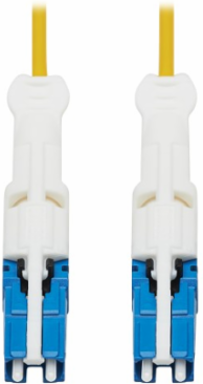

Tripp Lite N381C01M 400G Duplex Singlemode 9/125 OS2 Fiber Optic Cable, CS-UPC/CS-UPC, LSZH, Yellow, 1 m
- MPN: N381C01M
- UPC: 037332257987
- PPN: TRP-N381C-01M
CAD
$86.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
400G Duplex Singlemode 9/125 OS2 Fiber Optic Cable (CS-UPC/CS-UPC), Round LSZH Jacket, Yellow, 1 m
Documentation & Downloads
Specifications
Dimensions
- Cable Length
- 1 m (3.3 ft)
- Clad Diameter
- 125
- Primary Coating Diameter
- 600
- Side A - Connector 1
- CS DUPLEX (MALE)
- Push/Pull Tabs
- Yes
Minimum Bend Radius20 mm (Dynamic); 10 mm (Static)
Core Diameter9
Number of Fibers2
Side B - Connector 1CS DUPLEX (MALE)
Material
- Technology
- Singlemode
- Cable Jacket Color
- Yellow
- Cable Jacket Material
- LSZH
Endface PolishUPC
Connector ColorBlue, White
Cable Jacket RatingOFNR
Performance
- Network Compatibility
- 400 Gbps
- Attenuation @ 1310NM
- 0.36 dB/km
- Operating Temperature Range
- -4° to 140°F (-20° to 60°C)
- Operating Humidity Range
- 5% to 85% RH, Non-Condensing
Transmission Distance2KM @ 1310NM Wavelength
Attenuation @ 1550NM0.22 dB/km
Storage Temperature Range-4° to 140°F (-20° to 60°C)
Storage Humidity Range35% to 65% RH, Non-Condensing
Reference
- Product Warranty Period
- Lifetime limited warranty
