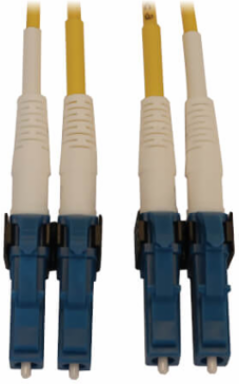

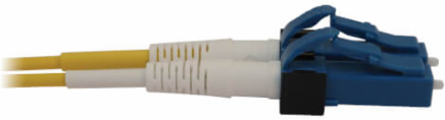

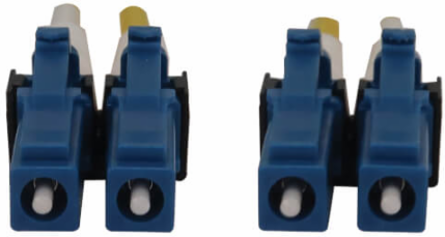

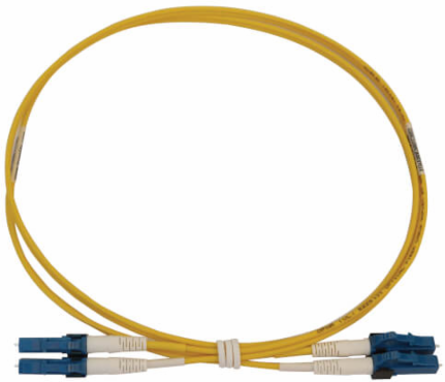

Tripp Lite N370X01M Fiber Optic Cable, 400G Duplex Singlemode 9/125 OS2, Switchable LC/UPC, LSZH, Yellow, 1 m
- MPN: N370X01M
- UPC: 037332271778
- PPN: TRP-N370X-01M
CAD
$30.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
400G Duplex Singlemode 9/125 OS2 Switchable Fiber Optic Cable (LC/UPC M/M), LSZH, Yellow, 1 m (3.3 ft.)
Documentation & Downloads
Specifications
Material
- Technology
- Singlemode
- Cable Jacket Material
- LSZH
- Cable Jacket Color
- Yellow
Endface PolishUPC
Cable Jacket RatingOFNR
Connector ColorBlue
Dimensions
- Cable Length
- 1 m (3.3 ft)
- Switchable Polarity
- Yes
- Core Diameter
- 9.0 um
- Primary Coating Diameter
- 600.0 um
- Minimum Bend Radius
- 20 mm (Dynamic); 10 mm (Static)
Optical PortLC
Number of Fibers2
Clad Diameter125 um
Cable Outer Diameter2.0 +/- 0.1 mm x 4.1 +/- 0.2 mm
Performance
- Network Compatibility
- 1 Gbps (Gigabit); 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
- Attenuation @ 1550nm
- 0.3 dB/km
- Storage Temperature Range
- -4 to 140F (-20 to 60C)
Attenuation @ 1310nm0.4 dB/km
Operating Temperature Range-4 to 140F (-20 to 60C)
Relative Humidity5% to 85% RH, Non-Condensing
Compliance
- Product Warranty Period
- Lifetime limited warranty
