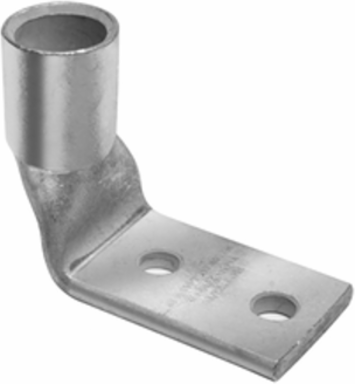

Burndy YA26L2TC14E290 Copper Compression Terminal, 2/0 AWG Cu, 2-Hole, 1/4" Stud, .75" Spacing, Standard Barrel, 90 Degree Pad Angle, Tin Plated, UL/CSA
- MPN: YA26L2TC14E290
- UPC: 781810033586
- PPN: BUR-50236Y
- UNSPSC: 39121405
CAD
$30.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
YA26L2TC14E290, Copper Compression Terminal, 2/0 AWG Cu, 2-Hole, 1/4" Stud, .75" Spacing, Standard Barrel, 90 Degree Pad Angle, Tin Plated, UL/CSA
Features
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Standard barrel length is recommended for installations with limited space availability
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- 2-Hole design prevents rotation
Specifications
Key Specifications
- Country of Origin
- United States
- Conductor - Copper Str Navy Size Range
- 125 (61) Navy
- Conductor - Copper Str Size Range
- 2/0 AWG
- Description - Slang
- TERM CODE STD BBL TN TEL
- Dimension - B Length inch
- 0.94 in
- Dimension - Bolt Size fraction
- 1/4
- Dimension - D inch
- 1.39 in
- Dimension - Hole Size inch
- 0.27
- Dimension - L Length Overall mm
- 45 mm
- Dimension - N inch
- 0.31 in
- Dimension - Pad Width inch
- 0.83 in
- Dimension - Stud Size fraction
- 1/4
- Dimension - Z inch
- 0.33 in
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Tongue Type
- Standard
- Plating Type
- Tin - Electro Plated
- Standards - Industry Standards Met
- UL 486A-486B
- Trade Name
- HYLUG™
- Standard
- UL 486A-486B
- Voltage Rating
- 35 kV
- Conductor Type
- CODE
- Finish Type
- Tin-Plated
- Class Code
- B55
- Harmonization Code
- 8535908020
- Lead Time
- 12 wk
- Angle - Pad
- 90 °
- Number of Pad Holes
- 2
- Color Code
- Black
- Voltage - Maximum
- 35000
- BOX SIZE
- 2.492x2.996x3.236 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810033586
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810033587
- Package - Total Units
- 10 EA
- Package Weight
- 0.000 lb.
- NAICS Code
- 3359319104
Conductor - Copper Str Navy Size125 (61) Navy
Conductor - Copper Str Size2/0 AWG
Conductor - MaterialCOPPER
Dimension - B Length fraction15/16 in
Dimension - Bolt Hole Size inch0.27 in
Dimension - Bolt Size inch0.25
Dimension - Hole Size fraction1/4
Dimension - Hole Size mm6.9 mm
Dimension - Length Overall inch1.79 in
Dimension - Outside Diameter inch0.56 in
Dimension - Strip Length inch1 in
Dimension - Stud Size inch1/4
Feature - Barrel StyleChamfered;Skived
Industry Standard(s)UL 486A-486B
Physical Attribute - Tongue Angle90 Degree
PlatedY
Product TypeTERMINAL
Standards - RoHS Compliance StatusCM
ApplicationWire Termination
TypeStandard Barrel, Tin Plated
Conductor Size2/0 AWG
Connector TypeSTANDARD BARREL
Certification AgencyProposition 65
Freight Class Code16027000
Image Actual Or RepresentativeA
Sub Class CodeB55BH1F
Die Index13
UL ListedYes
MaterialCopper
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.900 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Package - GTIN - Package30781810033587
Package Quantity10 EA
Standard Package Quantity10
Certifications
- CSA Approved
- Yes
- ETL
- No
cULusNo
UL RecognizedNo
