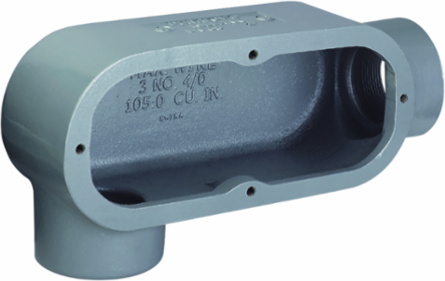

Killark LR78 2-1/2 Inch LR Hub Conduit Body, Iron, Powder Epoxy Finish
Killark LR78 2-1/2 Inch LR Hub Conduit Body, Iron, Powder Epoxy Finish
- MPN: LR78
- UPC: 783936481296
- PPN: HBL-LR78
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$591.40/ EA
Description
2-1/2" LR Hub, Iron Duraloy 8 Conduit Body
Features
- Completely interchangeable with competative bodies, gaskets, and covers.
- Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing.
- Raintight when used with gasketed covers.
- Stainless steel screws on stamped and cast covers.
- Smooth integral wire bushings.
- Completely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i
Specifications
Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Height
- 5 in
- Length
- 14 in
- Type
- Conduit Body
- Engineering Drawing 1 Display Text
- LR78 Engineering Drawing
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- COND BODY,LR,GRAY IRON 2 1/2"
- Harmonization Code
- 7307110030
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Gross Weight with Packaging
- 14.6
- UL File Number
- E3397
- Series
- Duraloy 8 Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936481296
Dimensions14 in x 7 in x 5 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
FinishPowder Epoxy Paint
Hub Size2-1/2"
Special FeaturesCompletely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i
Width7 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternLR
MaterialIron
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
