Tripp Lite PDU1220T 2.4kW Single-Phase 120V Basic PDU, 13 NEMA 5-15/20R Outlets, NEMA L5-20P Input, 15 ft. Cord, 1U Rack-Mount

2.4kW Single-Phase 120V Basic PDU, 13 NEMA 5-15/20R Outlets, NEMA L5-20P Input, 15 ft. Cord, 1U Rack-Mount - https://media.province-electric.com/tripplite/2020q1/ef6b0171d93d6e772df910ffcc223c882f8d1667-medium.png

2.4kW Single-Phase 120V Basic PDU, 13 NEMA 5-15/20R Outlets, NEMA L5-20P Input, 15 ft. Cord, 1U Rack-Mount

MPN: PDU1220T
UPC: 037332119148
PPN: TRP-PDU1220T

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$378.48/ EA

Qty:

Loading add to cart quantity...

Description

Delivers 120V single-phase AC power to multiple loads from a utility outlet, generator or UPS system in a high-density IT environment. Ideal for networking, telecom, security, audio/video and sound reinforcement applications.

Features

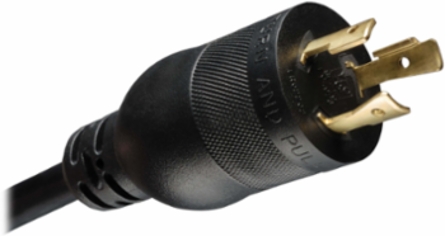

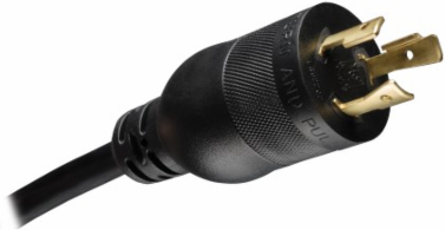

NEMA L5-20P input with 15 ft. (4.5 m) cord
13 NEMA 5-15/20R outlets—12 rear and 1 front
Switchless design prevents accidental shutdown
Reversible all-metal housing
Installs in rack, on wall or under counter
5-year limited warranty

Specifications

Certifications

Certifications: Tested to UL1363 5TH Edition, CAN/CSA-22.2 No. 308-14

Physical

Form Factors Supported: 1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported

Minimum Required Rack Depth (inches): 9.5

PDU Form Factor: Horizontal (1U)

Shipping Weight (lbs.): 5.70

Unit Weight (lbs.): 5.2

Material of ConstructionMetal

Outlets Measurement (Center to Center)30.2mm

Shipping Dimensions (hwd / in.)9.30 x 2.25 x 20.40

Unit Dimensions (hwd / in.)1.75 x 17.5 x 4.5

User Interface, Alerts & Controls

Switches: No power switch

Input

PDU Input Voltage: 100; 120; 127

Maximum Input Amps: 20

Input Phase: Single-Phase

Recommended Electrical Service20A 120V

PDU Plug TypeNEMA L5-20P

Input Cord Length (ft.)15

Output

Frequency Compatibility: 50 / 60 Hz

Output Receptacles: (13) 5-15/20R

Overload Protection: 20A circuit breaker

Output Capacity Details2.5kW (127V), 2.4kW (120V), 2.0kW (100V) / 20A total capacity; 16A max per 5-15/20R outlet

Output Nominal Voltage100; 120; 127

Environmental

Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)

Operating Elevation (ft.): 0-10,000

Relative Humidity5 to 95% non-condensing

Operating Elevation (m)0-3000

Overview

UPC Code: 037332119148

PDU TypeBasic

Special Features

TVSS Grounding: Back panel grounding lug

Warranty

Product Warranty Period (Worldwide): 5-year limited warranty
