Tripp Lite

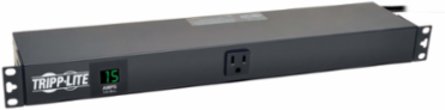

Tripp Lite PDUMH15-RA 1.4kW Single-Phase Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V input, 15ft Cord, 1U Rack-Mount

1.4kW Single-Phase Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V input, 15ft Cord, 1U Rack-Mount
1.4kW Single-Phase Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V input, 15ft Cord, 1U Rack-Mount
1.4kW Single-Phase Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V input, 15ft Cord, 1U Rack-Mount
1.4kW Single-Phase Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V input, 15ft Cord, 1U Rack-Mount
1.4kW Single-Phase Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V input, 15ft Cord, 1U Rack-Mount
  • MPN: PDUMH15-RA
  • UPC: 037332183231
  • PPN: TRP-PDUMH15-RA

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$299.67/ EA

Description

1.4kW Single-Phase Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V input, 15ft Cord, 1U Rack-Mount

Features

  • Metered single phase 15A 120V PDU

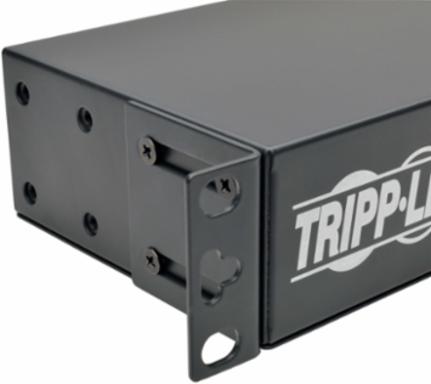

  • 1U horizontal rackmount, Digital current meter

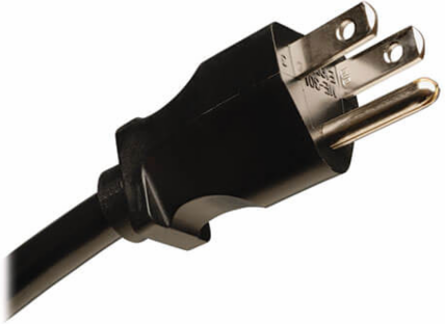

  • NEMA 5-15P input with 15 ft / 4.5m line cord
  • 13 NEMA 5-15R outlets oriented with ground pin on the bottom (1 front / 12 rear)
  • Reversible housing 4.5 in / 11.4cm depth
  • 2-year limited warranty

Specifications

Certifications

Certifications
Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant

Physical

Form Factors Supported
1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
Minimum Required Rack Depth (inches)
6.8
Shipping Dimensions (hwd / in.)
2.25 x 20.50 x 10.00
Unit Dimensions (hwd / in.)
1.75 x 17.5 x 3.75
Material of ConstructionMetal
PDU Form FactorHorizontal (1U)
Shipping Weight (lbs.)5.20
Unit Weight (lbs.)4.6

User Interface, Alerts & Controls

Front Panel LCD Display
Digital display reports total PDU output current in amps
Switchesn/a

Input

PDU Input Voltage
100; 120; 127
Maximum Input Amps
15
PDU Plug Type
NEMA 5-15P
Input Cord Length (ft.)
15
Recommended Electrical Service15A 120V
Maximum Input Amps DetailsAgency de-rated to 12A continuous
Input PhaseSingle-Phase

Output

Frequency Compatibility
50 / 60 Hz
Output Receptacles
(13) 5-15R
Overload Protection
15A circuit breaker
Output Capacity Details1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet
Output Nominal Voltage100; 120; 127

Environmental

Storage Temperature Range
-30°C to +50°C (-22°F to +122°F)
Relative Humidity5 to 95% non-condensing

Overview

UPC Code
037332183231
PDU TypeMetered

Special Features

TVSS Grounding
Rear grounding lug

Warranty

Product Warranty Period (Worldwide)
2-year limited warranty

Downloads
