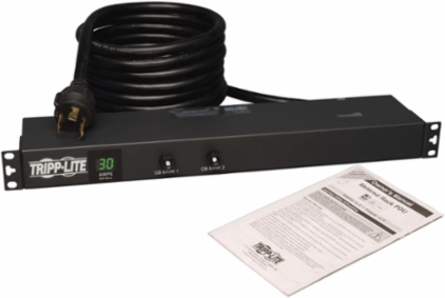

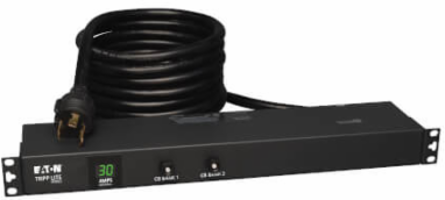

Tripp Lite PDUMH30 2.9kW Single-Phase Metered PDU, 120V Outlets (12 5-15/20R), L5-30P, 15ft Cord, 1U Rack-Mount
Tripp Lite PDUMH30 2.9kW Single-Phase Metered PDU, 120V Outlets (12 5-15/20R), L5-30P, 15ft Cord, 1U Rack-Mount
- MPN: PDUMH30
- UPC: 037332157676
- PPN: TRP-PDUMH30
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$759.52/ EA
Description
2.9kW Single-Phase Metered PDU, 120V Outlets (12 5-15/20R), L5-30P, 15ft Cord, 1U Rack-Mount
Features
- Metered single phase 30A 120V 1U horizontal rackmount PDU
- Two-digit current meter reports total PDU input current in amps
- Attached 15 ft. / 4.5m cord with NEMA L5-30P input plug
- 12 NEMA 5-15/20R outlets
- Reversible housing, 6.5 in. / 16.5cm depth
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant
Physical
- Form Factors Supported
- 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
- Minimum Required Rack Depth (inches)
- 11.5
- PDU Form Factor
- Horizontal (1U)
- Shipping Weight (lbs.)
- 6.10
- Unit Weight (lbs.)
- 7
Material of ConstructionMetal
Outlets Measurement (Center to Center)Distance between outlets = 30.20mm; Distance between Bank 1 and Bank 2 = 41.45mm
Shipping Dimensions (hwd / in.)11.00 x 3.20 x 20.20
Unit Dimensions (hwd / in.)1.75 x 17.5 x 6.5
User Interface, Alerts & Controls
- Front Panel LCD Display
- Two digit current meter reports PDU input current in amps
Switchesn/a
Input
- PDU Input Voltage
- 100; 120; 127
- Maximum Input Amps
- 30
- PDU Plug Type
- NEMA L5-30P
- Input Cord Length (ft.)
- 15
Recommended Electrical Service30A 120V
Maximum Input Amps DetailsAgency de-rated to 24A continuous
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (12) 5-15/20R
- Overload Protection
- Two 20A breakers protect 6 outlets each
Output Capacity Details3.05kW (127V), 2.88kW (120V), 2.4kW (100V) / 30A total capacity (Agency de-rated 24A); 20A max per breakered load bank; 16A max per outlet
Output Nominal Voltage100; 120; 127
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
- Operating Elevation (ft.)
- 0-10,000
Relative Humidity5 to 95% non-condensing
Operating Elevation (m)0-3000
Overview
- UPC Code
- 037332157676
PDU TypeMetered
Special Features
- TVSS Grounding
- Rear grounding lug
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
