Tripp Lite PDUMH30HV 5.8kW Single-Phase Metered PDU, 208/240V Outlets (16 C13 & 2 C19), L6-30P, 12ft Cord, 2U Rack-Mount, TAA
Tripp Lite PDUMH30HV 5.8kW Single-Phase Metered PDU, 208/240V Outlets (16 C13 & 2 C19), L6-30P, 12ft Cord, 2U Rack-Mount, TAA
- MPN: PDUMH30HV
- UPC: 037332159021
- PPN: TRP-PDUMH30HV
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$922.30/ EA
Description
5.8kW Single-Phase Metered PDU, 208/240V Outlets (16 C13 & 2 C19), L6-30P, 12ft Cord, 2U Rack-Mount, TAA
Features
- Metered single phase 30A 208/240V 2U horizontal rackmount PDU
- Two built-in meters report output current in amps for each load bank

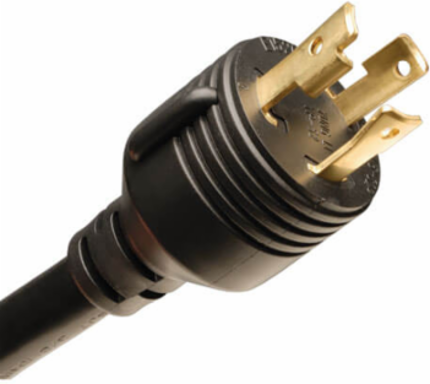

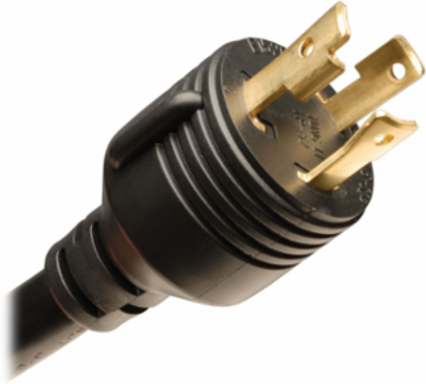

- Attached 12ft / 3.6m cord with NEMA L6-30P input plug

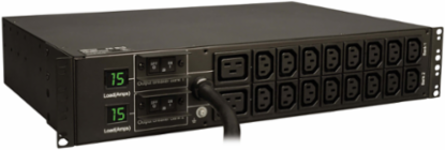

- 18 total outlets (16 C13, 2 C19)

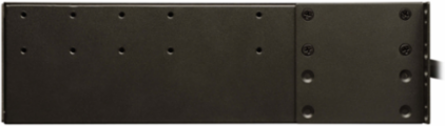

- Reversible housing, 2U 208/240V rackmount metered PDU
- TAA Compliant
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
Physical
- Form Factors Supported

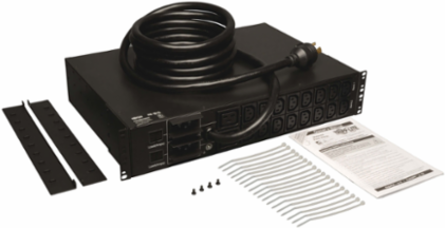

- 2U rackmount; mounting accessories included
- Minimum Required Rack Depth (inches)
- 16
- Shipping Dimensions (hwd / in.)
- 7.80 x 16.70 x 19.80
- Unit Dimensions (hwd / in.)
- 3.5 x 17.5 x 12.5
Material of ConstructionMetal
PDU Form FactorHorizontal (2U)
Shipping Weight (lbs.)15.80
Unit Weight (lbs.)13.7
User Interface, Alerts & Controls
- Front Panel LCD Display
- Set of 2 digital meters continuously report output current for breakered load banks 1 & 2 (Bank 1: upper row of 9 outlets / Bank 2: lower row of 9 outlets)
Switchesn/a
Input
- PDU Input Voltage
- 200; 208; 240
- Maximum Input Amps
- 30
- PDU Plug Type
- NEMA L6-30P
- Input Cord Length (ft.)
- 12
Recommended Electrical Service30A 208/240V
Maximum Input Amps DetailsAgency de-rated to 24A continuous
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (16) C13; (2) C19
- Overload Protection
- Two 20A breakers protect 9 outlets each
Output Capacity Details5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Output Nominal Voltage200; 208; 240
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
Relative Humidity5-95% non-condensing
Overview
- UPC Code
- 037332159021
PDU TypeMetered
Special Features
- TVSS Grounding
- Grounding lug
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
