Tripp Lite PDUMH15NET2LX 1.4kW Single-Phase Switched PDU, LX Platform Interface, 120V Outlets (8 5-15R), NEMA 5-15P, 12 ft. Cord, 1U Rack, TAA
Tripp Lite PDUMH15NET2LX 1.4kW Single-Phase Switched PDU, LX Platform Interface, 120V Outlets (8 5-15R), NEMA 5-15P, 12 ft. Cord, 1U Rack, TAA
- MPN: PDUMH15NET2LX
- UPC: 037332203274
- PPN: TRP-PDUMH15NET2LX
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1178.05/ EA
Description
1.4kW single-phase PDU distributes, monitors and manages AC power in an IT environment. Built-in Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime.
Features
- 1.4kW 120V single-phase switched 1U PDU
- 8 individually controllable NEMA 5-15R outlets
- Built-in Java-free LX Platform interface for remote access 24/7
- Digital ammeter for on-site load monitoring in real time

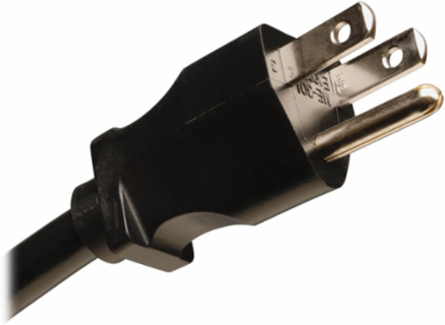

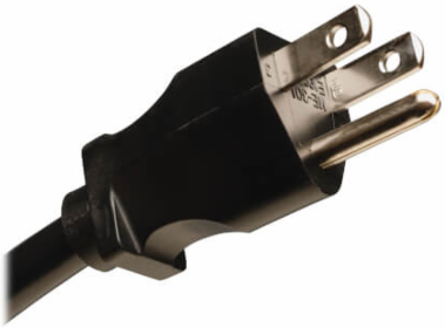

- NEMA 5-15P input with 12 ft. AC power cord
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
- Distributes, Monitors and Manages Network-Grade AC Power
- 8 Switched NEMA 5-15R Outlets Distribute AC Power
- Built-In LX Platform Interface
- Broad Communications Compatibility
- Essential Safety Features
- Reduce Service Calls with Auto Probe Autonomous Device Management
- Flexible Mounting Options
- TAA-Compliant
Specifications
Certifications
- Certifications
- Tested to UL 60950-1 (USA). CAN/CSA-C22.2 NO. 60950-1 (Canada), Class A Part 15 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
Physical
- Form Factors Supported
- 1U rackmount
- Minimum Required Rack Depth (inches)
- 7.3
- Shipping Dimensions (hwd / in.)
- 0.00 x 0.00 x 0.00
- Unit Dimensions (hwd / in.)
- 1.75 x 17.5 x 4.25
Material of ConstructionMetal
PDU Form FactorHorizontal (1U)
Shipping Weight (lbs.)0.00
Unit Weight (lbs.)5.2
User Interface, Alerts & Controls
- Front Panel LCD Display
- Digital display reports total PDU output current in amps
- Switches
- Recessed reset button for rebooting SNMP management card without affecting AC output to connected equipment
Front Panel LEDs8 LEDs display power on-off status for each output receptacle. Ethernet Link and Status LED's for network activity. System status LED for monitoring system operation.
Input
- PDU Input Voltage
- 100; 120; 127
- Maximum Input Amps
- 15
- PDU Plug Type
- NEMA 5-15P
- Input Cord Length (ft.)
- 12
Recommended Electrical Service15A 120V
Maximum Input Amps DetailsAgency de-rated to 12A continuous
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (8) 5-15R
- Overload Protection
- n/a
Output Capacity Details1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet
Output Nominal Voltage100; 120; 127
Customized Load Management Receptacles8 individually switched output receptacles
Communications
- SNMP Compatibility
- Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
Relative Humidity5 to 95% (non-condensing)
Overview
- UPC Code
- 037332203274
PDU TypeSwitched
Special Features
- TVSS Grounding
- Rear panel grounding lug
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
