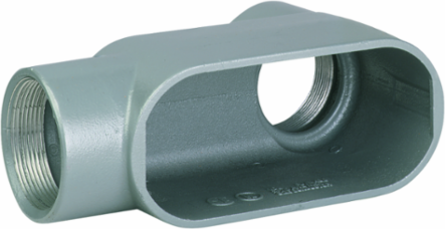

Killark LB67SA 2 Inch Aluminum LB Hub Conduit Body, NEMA 3 Seal, Powder Epoxy Finish
Killark LB67SA 2 Inch Aluminum LB Hub Conduit Body, NEMA 3 Seal, Powder Epoxy Finish
- MPN: LB67SA
- UPC: 783936080055
- PPN: HBL-LB67SA
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$228.18/ EA
Description
2" LB Hub, Aluminum Form 7 Conduit Body
Features
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
- Suitable for wet locations when used with gaskets.
- High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
- Innovative spring clip design for installation ease and repeat usage.
- For use with threaded rigid conduit steel or aluminum.
- Flat-back design for greater wiring capacity and mounting stability.
- Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Specifications
Specifications
- Special Features
- Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
- Color
- Gray
- Dimensions
- 11.875 in x 7.375 in x 4.125 in
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Hub Size
- 2"
- Width
- 7.375 in
- Type
- Conduit Body
- Description - Invoice
- CORROSAFE7 2" LB COND BDY
- Harmonization Code
- 7609000299
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Gross Weight with Packaging
- 1.86
- UL File Number
- E3397
- Series
- Duraloy 7
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936080055
ARRA CompliantContact Manufacturer
Country of OriginMX
Each - Width7.375 in
Height4.125 in
Length11.875 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternLB
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Downloads
