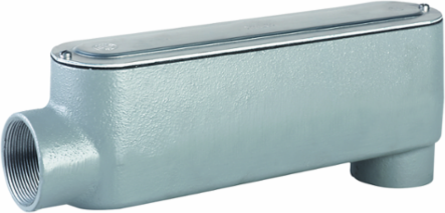

Killark NECLB-6 2 Inch LB Hub Aluminum Conduit Body with Gasket, 126 cu in Volume
Killark NECLB-6 2 Inch LB Hub Aluminum Conduit Body with Gasket, 126 cu in Volume
- MPN: NECLB-6
- UPC: 783936421032
- PPN: HBL-NECLB-6
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$575.38/ EA
Description
2" LB Hub, Aluminum NEC Conduit Body
Features
- Large cover opening (length of opening exceeds six times the trade diameter of the hub size) for easy access to conductors. Cover and gasket included. Volume is 126 cu. in.
Specifications
Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Height
- 7 in
- Length
- 15 in
- Type
- 40% Fill Conduit Body With Cover & Gasket
- Engineering Drawing 1 Display Text
- NECLB-6 Engineering Drawing
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 2" 'O' SERIES (CB)
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- LB
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 20.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5
Dimensions15 in x 3 in x 7 in
ApplicationSpecially designed to meet National Electrical Code Article 370-28(a) (2) for angle pulls where the distance between the raceway entry and the opposite wall of the fitting must be at least six times the trade diameter of the raceway. A pull box with easy
FinishPowder Epoxy Paint
Hub Size2"
Special FeaturesLarge cover opening (length of opening exceeds six times the trade diameter of the hub size) for easy access to conductors. Cover and gasket included. Volume is 126 cu. in.
Width3 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging4
UL File NumberE3397
SeriesMoguls Series
BOX SIZE8.000x21.500x10.000 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936421032
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
