Schneider Electric NSYSPLA100 Set of 2 Uprights for 19 Inch Chassis, Galvanised Steel, 1000 mm Height
Schneider Electric NSYSPLA100 Set of 2 Uprights for 19 Inch Chassis, Galvanised Steel, 1000 mm Height
- MPN: NSYSPLA100
- PPN: SCH-NSYSPLA100
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$128.75/ EA
Description

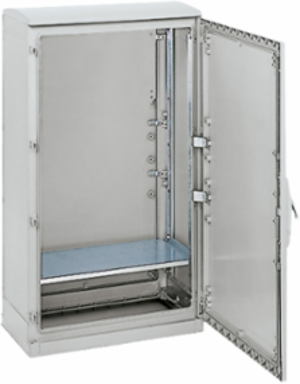

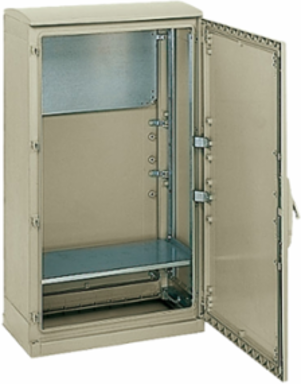

Set of Uprights for mounting horizontal support plate or 19 inch chassis in PLA. Enclosure dimension is W is 1000 mm. Multi-purpose mounting accessory. Intermediate support in the 2-door enclosures. Adjustable in depth every 50 mm with caged nuts. cut-out dimensions 11 x 13 mm. Galvanised Steel. Set of 2. Fixing elements, 1 right upright, 1 left upright incl.
Features
- Designed to support assorted equipment or simply to install a separation.
- In the two door enclosures, the installation of the plate
- the uprights requires the prior installation of an intermediate support, refNSYSBPLA, presented beside.
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 right upright, 1 left upright
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Cut Out Dimensions
- 11 x 13 mm
- Fixing Mode
- by fixing element - sides of enclosure
- Mounting Support
- intermediate support in the 2-door enclosures
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Sustainable Packaging
- No
- Medium Desc
- Set of 2 uprights for mount. hor.support plate or 19"chassis in PLAencl.H1000mm
- Product Kit Identifier
- N
- Adjustment
- adjustable in depth every 50 mm with caged nuts
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 1000 mm D: 320 mm, - H: 1000 mm D: 320 mm, - H: 1000 mm D: 320 mm, - H: 1000 mm D: 420 mm, - H: 1000 mm D: 420 mm, - H: 1000 mm D: 420 mm, - H: 1000 mm D: 320 mm, - H: 1000 mm D: 320 mm, - H: 1000 mm D: 320 mm, - H: 1000 mm D: 420 mm
Local Publishable Date2026-02-24
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Device Applicationmulti-purpose
Materialgalvanised steel
Package Weight Lbs1.416 kg
Product Or Component Typeupright
ReturnabilityNo
Accessory Separate Part Category2mounting accessory
Stocking FlagY
Pep CodeENVPEP1105005EN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1105005EN
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP1105005EN
General Attributes
- Product Or Component Type
- upright
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 39.37 in
Depth70 mm
