Schneider Electric NSYSPLA150 Set of 2 Uprights for Thalassa PLA Enclosures, Adjustable Depth 25 mm, Height 1500 mm
- MPN: NSYSPLA150
- PPN: SCH-NSYSPLA150
CAD
$141.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

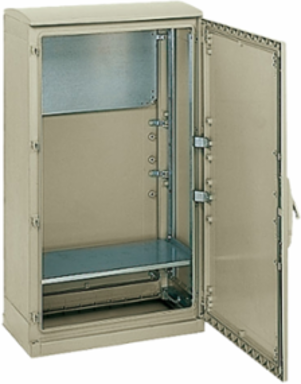

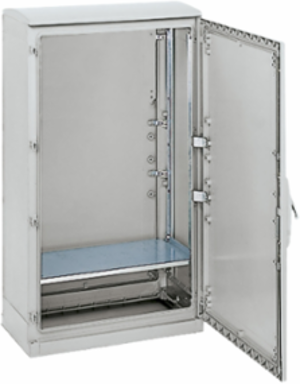

Designed for versatility and durability, this set of uprights is ideal for mounting horizontal support plates or 19" chassis within the Thalassa PLA enclosures. Crafted from galvanised steel, these uprights offer a robust solution with adjustable depth and height options, allowing for precise installation every 25 mm and 2.5 mm respectively. With a nominal height of 1500 mm, they are specifically engineered to fit seamlessly into multi-purpose applications, ensuring stability and support for your equipment. Backed by an 18-month warranty and originating from Spain, these uprights are a reliable choice for enhancing your enclosure setup.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Height52.56 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements1 right upright, 1 left upright
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Material
- galvanised steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Sustainable Packaging
- No
- Height Nominal
- nominal: 1500 mm
- Accessory / Separate Part Category
- mounting accessory
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8302423065
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 1500 mm, - H: 1500 mm, - H: 1500 mm, - H: 1500 mm
Local Publishable Date2026-04-18
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Adjustmentadjustable in depth every 25 mm with caged nutsadjustable in height every 2.5 mm with quarter-turn nuts
Fixing Modeby fixing element - sides of enclosure
Mounting Supportintermediate support in the 2-door enclosures
Product Or Component Typeupright
ReturnabilityNo
Pep CodeENVPEP1105005EN
Height Usefulreal: 1335 mm
Cut-out Dimensions11 x 13 mm
Package Weight(Lbs)2.124 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1105005EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1105005EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- upright
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
