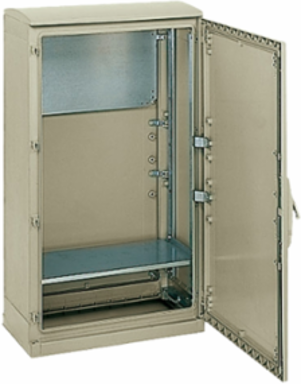

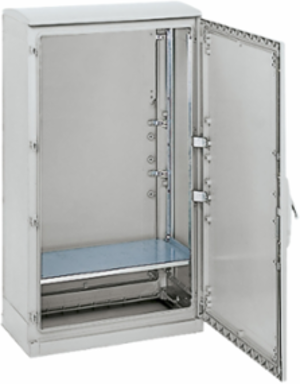

Schneider Electric NSYSPLA125 Set of 2 Galvanised Steel Mounting Uprights for 19 Inch Chassis, Height 1250 mm
- MPN: NSYSPLA125
- PPN: SCH-NSYSPLA125
- UNSPSC: 39121324
CAD
$119.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Set of Uprights for mounting horizontal support plate or 19 inch chassis in PLA. Enclosure dimension is W is 1250 mm. Multi-purpose mounting accessory. Intermediate support in the 2-door enclosures. Adjustable in depth every 50 mm with caged nuts. cut-out dimensions 11 x 13 mm. Galvanised Steel. Set of 2. Fixing elements, 1 right upright, 1 left upright incl.
Features
- Very sturdy 19" metal chassis, designed for installation in enclosures with a width of 750 and 1250 mm.
- These chassis can be used as partial mounting plates in enclosures with a height greater than the nominal height.
- Incompatible with the internal doors and the step slides.
- Fixed chassis made up of two uprights with fixings
- Material: Galvanized steel
- Finish: Epoxy polyester paint
- Color: RAL 7035 grey
- Maximum load: 3 kg per unit
- In enclosures with a width of 1250 mm, the chassis is installed in the 750-mm part with an intermediate support
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Spain |
|---|---|
| Depth | 70 mm |
| Height | 42.52 in |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | fixing elements1 right upright, 1 left upright |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | multi-purpose |
| Fixing Mode | by fixing element - sides of enclosure |
| Mounting Support | intermediate support in the 2-door enclosures |
| Product Or Component Type | upright |
| Returnability | No |
| Height Nominal | nominal: 1250 mm |
| Accessory / Separate Part Category | mounting accessory |
| Customs Code | 8302423065 |
| Warranty In Months | 18 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Enclosure Nominal Dimensions | - H: 1250 mm D: 320 mm, - H: 1250 mm D: 320 mm, - H: 1250 mm D: 320 mm, - H: 1250 mm D: 420 mm, - H: 1250 mm D: 420 mm, - H: 1250 mm D: 420 mm, - H: 1250 mm D: 320 mm, - H: 1250 mm D: 320 mm, - H: 1250 mm D: 320 mm, - H: 1250 mm D: 420 mm |
| Local Publishable Date | 2026-04-18 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Adjustment | adjustable in depth every 50 mm with caged nuts |
| Energy Efficiency Optimized | False |
| Material | galvanised steel |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range | PanelSeT |
| Sustainable Packaging | No |
| Height Useful | real: 1080 mm |
| Nbr. Of Units In Pkg. | 1 |
| Cut Out Dimensions | 11 x 13 mm |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP1105005EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1105005EN |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | upright |
|---|
ETIM
| ETIM 8 | EC002620 |
|---|---|
| ETIM 10 | EC002620 |
| ETIM 9 | EC002620 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
