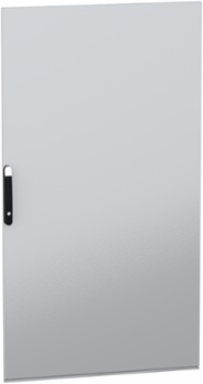

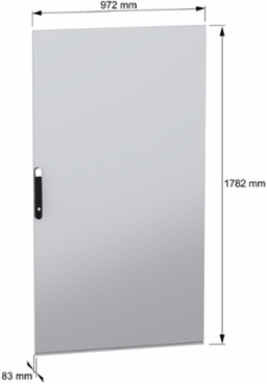

Plain Door for Electrical Enclosure, H1800 W1000mm, 15.3 kg

Documentation & Downloads

Schneider Electric NSYSFND1810 Plain Door for Electrical Enclosure, H1800 W1000mm, 15.3 kg

MPN: NSYSFND1810
PPN: SCH-NSYSFND1810

CAD

$969.94

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Loading dialog...

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

This plain door for electrical enclosures from Schneider Electric is designed to offer a robust solution for protecting electrical components. Measuring H1800 x W1000 mm, it provides ample coverage while maintaining an aesthetic that blends seamlessly with any industrial setting. With a weight of 15.3 kg, it balances durability with manageable handling, ensuring ease of installation. Ideal for various applications, this door enhances the overall safety and functionality of electrical enclosures, making it a pivotal choice for professionals in the field.

Documentation & Downloads

Specifications

Additional

Maximum Load: 60 kg/m²

Door Opening Side: Reversible 120°

Width: Nominal 969 mm

Net Weight: 15.3 kg

Surface Finish: Epoxy-polyester powder

Number of Locks: 1

RoHS Compliance: Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free: Yes

Mounting Location: Front

Device Application: Multi-purpose

Device Composition: 1 door, 1 lock with handle and 5 mm double bar insert, 1 locking bar system 4 points, 1 reinforcement frame, 4 hinges, 4 locking bar catches

Door TypeExternal plain

HeightNominal 1766 mm

Enclosure Nominal DimensionsH: 1800 mm W: 1000 mm

MaterialSheet steel

Lock TypeLock 5 mm double bar

IK Degree of ProtectionIK10

Reach Free Of SVHCYes

Sustainable Offer StatusGreen Premium product

Range CompatibilityPanelSeT, PanelSeT SFN

Product TypeDoor

ColorGray RAL 7035
