Schneider Electric NSYSQCR40120 Quick Fixing Cross Rails Set of 2, 40 mm x 1200 mm, Galvanized Steel
- MPN: NSYSQCR40120
- PPN: SCH-NSYSQCR40120
CAD
$88.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

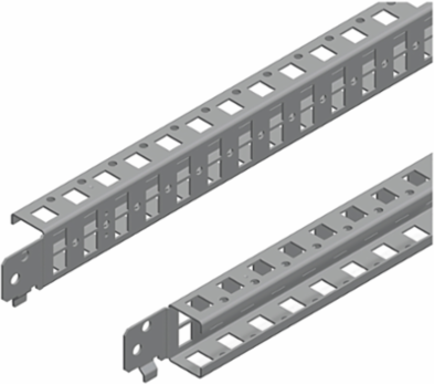

Spacial SF/SM quick fixing cross rails. 39 mm (1 row) x 1200 mm. Simple perforated 25 mm pitch. Does not require fixing support disposes of a wing on each end. In zinc-plated steel and with 1,5 mm thickness. Set of 2.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Egypt, Spain, India |
|---|---|
| Width | 1.57 in |
| Height | 43.7 in |
|---|---|
| Depth | 27 mm |
Complementary Attributes
| Maximum Load | 20 kg |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Enclosure Nominal Dimensions | -, - |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Adjustment | adjustable with a pitch of 25 mm |
| Device Composition | fixing elements2 cross rails |
| Material | steel |
| Number Of Horizontal Rows | 1 |
| Product Or Component Type | quick cross rails |
| Range | PanelSeT |
| Surface Finish | galvanized |
| Thickness | 1.5 mm |
| Height Useful | useful: 1110 mm |
| Width Real | 40 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8302423065 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mounting Location | on structure of enclosure, between cross rails |
| Local Publishable Date | 2026-04-18 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | multi-purpose |
| Fixing Mode | by screwsclipped - on structure |
| Mounting Support | adaptation profile, on SM enclosures |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | No |
| Sustainable Packaging | No |
| Height Nominal | nominal: 1200 mm |
| Width Nominal | 40 mm |
| Accessory / Separate Part Category | mounting accessory |
| Package Weight(Lbs) | 2.020 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | quick cross rails |
|---|
ETIM
| ETIM 8 | EC002620 |
|---|
| ETIM 9 | EC002620 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
