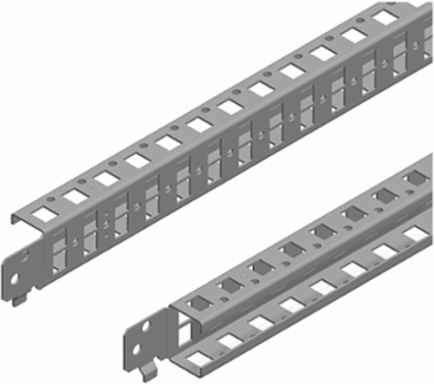

Schneider Electric NSYSQCR40100 Quick Fixing Cross Rails 40 mm x 1000 mm, Set of 2, Zinc-Plated Steel
Schneider Electric NSYSQCR40100 Quick Fixing Cross Rails 40 mm x 1000 mm, Set of 2, Zinc-Plated Steel
- MPN: NSYSQCR40100
- PPN: SCH-NSYSQCR40100
- UNSPSC: 39121327
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$71.92/ EA
Description
Spacial SF/SM quick fixing cross rails. 39 mm (1 row) x 1000 mm. Simple perforated 25 mm pitch. Does not require fixing support disposes of a wing on each end. In zinc-plated steel and with 1,5 mm thickness. Set of 2.
Features
- Used for the creation of structures inside the enclosure.
- Cross-rails available in three sizes: 40 mm (one row), 65 mm (two rows) and 90 mm (three rows).
- Each row is perforated every 25 mm with a 5.2 mm diameter hole
- A 11x13 mm cutout which enables fixing by means of M6 self-tapping screws, ref
- Equipment are fixed by means of caged nuts or self-tapping screws, Material: Zinc-coated steel
- Thickness: 15/10e mm
Specifications
Complementary Attributes
- Maximum Load
- 30 kg
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 cross rails
- Fixing Mode
- by screws, clipped - on structure
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- multi-purpose
- Material
- steel
- Package Weight Lbs
- 1.672 kg
- Product Or Component Type
- quick cross rails
- Range
- PanelSeT
- Surface Finish
- galvanized
- Thickness
- 1.5 mm
- Medium Desc
- Quick fixing cross rails, PanelSeT SFN, Spacial SF, Spacial SM, H40 W1000mm, 1 row, set of 2
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Mounting Locationbetween cross rails, on structure of enclosure
Local Publishable Date2025-07-10
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Energy Efficiency OptimizedFalse
Mounting Supportadaptation profile, on SM enclosures
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Accessory Separate Part Category2mounting accessory
Stocking FlagY
Adjustmentadjustable with a pitch of 25 mm
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- quick cross rails
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 35.83 in
Depth27 mm
