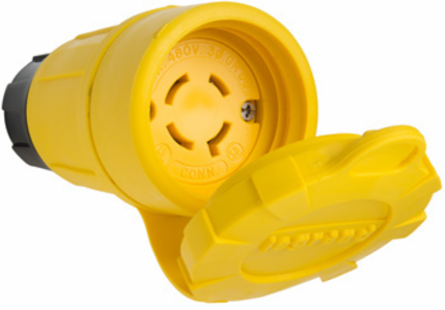

Pass & Seymour 27W76 Turnlok Watertight Connector 20A 480V NEMA 4X/6P Yellow 1.85 Inch x 4.03 Inch

Turnlok Watertight Connector 20A 480V NEMA 4X/6P Yellow 1.85 Inch x 4.03 Inch
  • MPN: 27W76
  • UPC: 785007032932
  • PPN: P-S-27W76

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$137.75/ EA

Description

Turnlok Watertight Connector 20A 480V NEMA 4X/6P Yellow 1.85 Inch x 4.03 Inch

Features

  • Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat and weather.
  • Nickel-plated blades and contacts for long-lasting, superior corrosion resistance.
  • Multi-point sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.
  • Devices resist high-pressure hosedown of 1,500 psi.
  • Color-coded sealing bushings provided for large range of cord diameters
  • Large ribs on body for a superior grip when mating.
  • For Covering Patents, see www.legrand.us/patents.

Specifications

Specifications

Depth
4.03 in
Color
Yellow
Width
1.85 in
Special Features
Rated watertight for 1,500 psi high-pressure hosedown, P&S Turnlok® watertight plugs & connectors feature rugged construction, multiple seals to ensure protection against the environment and ease of installation.
Type
Connector
Voltage
480.0 V
Features
Watertight
Number of Wires
4.0
Number of Phases
3.0
Number of Poles
3-Way
Application Sector
Industrial
Environmental Conditions
Moisture Resistance NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40°C (without impact) to +60°C continuous UV resistance All exposed material s are UV stabilized
Height1.85 in
Product LinePass & Seymour
Country of OriginUnited States
FlangedNo
Amperage20.0 A
StandardUL Listed
Indoor/OutdoorBoth
StandardCSA Listed
Warranty Type1-Year
Connector StyleLocking
NEMA Configuration CodeL16-20R
Terminal Accommodation#14 AWG - #10 AWG
