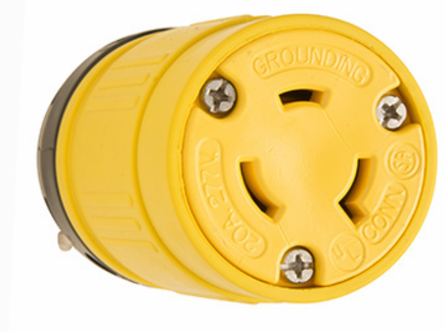

Pass & Seymour 2749 Rubber Dust-Tight Locking Connector, NEMA L7-20, 20A 277V, Yellow, 4.06 Inch Length
Pass & Seymour 2749 Rubber Dust-Tight Locking Connector, NEMA L7-20, 20A 277V, Yellow, 4.06 Inch Length
- MPN: 2749
- UPC: 785007033038
- PPN: P-S-2749
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$89.61/ EA
Description
Locking Dust-Tight Rubber Connector, 20amp 277volt, NEMA Configuration L7-20.
Features
- Thermoplastic elastomer (TPV) construction stands up to impacts,oils, chemicals, heat, and weather
- Two Screw cable clamp secures wire and provides superior strain relief
- Quick lead assembly screws aid in a fast installation
- Industrial strength, brass blades and contacts resist heat rise while providing excellent conductivity
- Keyed body and cover for easy assembly and alignment
- For covering patents, see www.legrand.us/patents.
Specifications
Specifications
- Length
- 4.06 in
- Width
- 2.14 in
- Country of Origin
- United States
- Flanged
- No
- Amperage
- 20.0 A
- Standard
- UL Listed
- Standard
- CSA Listed
- Warranty Type
- 1-Year
- Connector Style
- Locking
- Number of Poles
- Double Pole
- NEMA Configuration Code
- L7-20R
- Terminal Accommodation
- #14 AWG - #10 AWG
ColorYellow
Product LinePass & Seymour
Special FeaturesRated watertight for 1,500 psi high-pressure hosedown, P&S Turnlok® watertight plugs & connectors feature rugged construction, multiple seals to ensure protection against the environment and ease of installation.
TypeConnector
Voltage277.0 V
Number of Wires3.0
Number of Phases1.0
Indoor/OutdoorIndoor
FeaturesDust Resistant
Application SectorIndustrial
Environmental ConditionsMoisture Resistance NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40°C (without impact) to +60°C continuous UV resistance All exposed material s are UV stabilized
