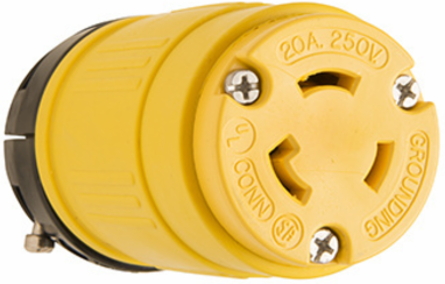

Pass & Seymour 2748 Rubber Dust-Tight NEMA L6-20 Locking Connector, 20A 250V, Yellow, 2.14 Inch Width, 4.06 Inch Length
- MPN: 2748
- UPC: 785007033366
- PPN: P-S-2748
CAD
$90.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Rubber Dust-Tight NEMA L6-20 Locking Connector, 20A 250V, Yellow, 2.14 Inch Width, 4.06 Inch Length
Features
- Thermoplastic elastomer (TPV) construction stands up to impacts,oils, chemicals, heat, and weather
- Two Screw cable clamp secures wire and provides superior strain relief
- Quick lead assembly screws aid in a fast installation
- Industrial strength, brass blades and contacts resist heat rise while providing excellent conductivity
- Keyed body and cover for easy assembly and alignment
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
- Length
- 4.06 in
- Color
- Yellow
- Product Line
- Pass & Seymour
- Flanged
- No
- Amperage
- 20.0 A
- Standard
- UL Listed
- Standard
- CSA Listed
- Warranty Type
- 1-Year
- Connector Style
- Locking
- Number of Poles
- Double Pole
- NEMA Configuration Code
- L6-20R
- Terminal Accommodation
- #14 AWG - #10 AWG
Width2.14 in
Country of OriginUnited States
Special FeaturesRated watertight for 1,500 psi high-pressure hosedown, P&S Turnlok® watertight plugs & connectors feature rugged construction, multiple seals to ensure protection against the environment and ease of installation.
TypeConnector
Voltage250.0 V
Number of Wires3.0
Number of Phases1.0
Indoor/OutdoorIndoor
FeaturesDust Resistant
Application SectorIndustrial
Environmental ConditionsMoisture Resistance NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40°C (without impact) to +60°C continuous UV resistance All exposed material s are UV stabilized
