Square D

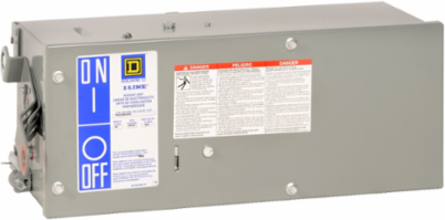

Square D PHD36020G Plug-in unit, I-Line Busway, H-frame, 20A, 3 phase, 3 wire, 600VAC, 14kA, ground

Plug-in unit, I-Line Busway, H-frame, 20A, 3 phase, 3 wire, 600VAC, 14kA, ground
  • MPN: PHD36020G
  • PPN: SCH-PHD36020G
  • UNSPSC: 39121601

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4045.83/ EA

Description

Plug-in unit, I-Line Busway, H-frame, 20A, 3 phase, 3 wire, 600VAC, 14kA, ground

Specifications

Environment

Product Certifications
UL || CSA

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1410002EN
Eu Rohs Directive
Compliant with Exemptions
California Proposition 65
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

Disconnector Device Type
thermal magnetic circuit breaker 20 A 14 kA 600 V || thermal magnetic circuit breaker 20 A 18 kA 480 V || thermal magnetic circuit breaker 20 A 25 kA 240 V
Busbar Description
ground
Breaking Capacity Code
D
Wiring Configuration
3-wire
[Ue] Rated Operational Voltage600 V AC 50/60 Hz
Level Or Classclass 5600
Fuse TypeH
Phase3 phase

Specifications

Module Type
H-Frame
Product Or Component Type
plug-in unit
Range Of ProductI-Line
