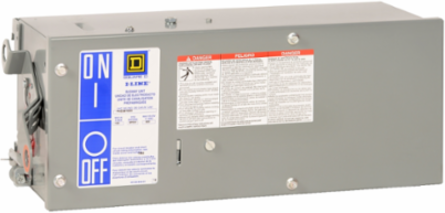

Square D PHJ36040G Plug-in unit, I-Line Busway, H-frame, 40A, 3 phase, 3 wire, 600VAC, 25kA, ground
- MPN: PHJ36040G
- PPN: SCH-PHJ36040G
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations. This circuit breaker plug-in unit is 40A, 600VAC, 3 phase, 3 wire with H-frame breaker. Its circuit breaker has a 25kA interrupting trip rating. This unit includes a ground. I-Line Busway plug in units are UL listed and CSA certified.
Documentation & Downloads
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL, CSA
- Local Publishable Date
- 2025-11-19
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Busbar Description
- ground
- Fuse Type
- H
- Module Type
- H-Frame
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- I-Line
- Sustainable Packaging
- No
- Pep Code
- ENVPEP1410002EN
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200020
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Device TypeBusway & cable - LV busway
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1909
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Disconnector Device Typethermal magnetic circuit breaker 40 A 25 kA 600 Vthermal magnetic circuit breaker 40 A 65 kA 480 Vthermal magnetic circuit breaker 40 A 100 kA 240 V
Level Or Classclass 5600
Phase3 phase
Product Or Component Typeplug-in unit
ReturnabilityNo
Wiring Configuration3-wire
[Ue] Rated Operational Voltage600 V AC 50/60 Hz
Package Weight(Lbs)14.515 kg
Warranty (In Months)18
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
General Attributes
- Phase
- 3 phase
- Range Of Product
- I-Line
Product Or Component Typeplug-in unit
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP1410002EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1410002EN
