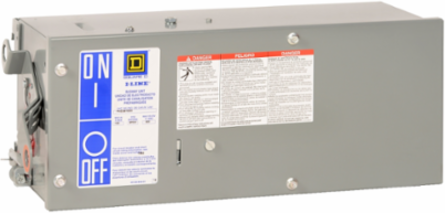

Plug-in unit, I-Line Busway, H-frame, 100A, 3 phase, 4 wire, 600VAC, 18kA, ground, neutral
Square D

Square D PHG36100GN Plug-in unit, I-Line Busway, H-frame, 100A, 3 phase, 4 wire, 600VAC, 18kA, ground, neutral

  • MPN: PHG36100GN
  • UPC: 785901828433
  • PPN: SCH-PHG36100GN
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations. This circuit breaker plug-in unit is 100A, 600VAC, 3 phase, 4 wire with H-frame breaker. Its circuit breaker has a 18kA interrupting trip rating. This unit includes a ground and neutral. I-Line Busway plug in units are UL listed and CSA certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States

Important Information Attributes

Persona Type Ids
LC, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Certificate Agency
CSA, UL
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Serviceability
No
Field Service Division
PPIBS
Weee Scope
In
Scope Perimeter
Outside of Europe
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Busbar Description
ground
Energy Efficiency Optimized
False
Level Or Class
class 5600
Phase
3 phase
Product Or Component Type
plug-in unit
Returnability
Yes
Wiring Configuration
4-wire
Nbr. Of Units In Pkg.
1
Take-back
No
Customs Code
8536200020
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
[Ue] Rated Operational Voltage600 V AC 50/60 Hz, 277/480 V AC 50/60 Hz
Local Publishable Date2025-11-19
Stocking FlagY
Device TypeBusway & cable - LV busway
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1909
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Disconnector Device Typethermal magnetic circuit breaker 100 A 18 kA 600 Vthermal magnetic circuit breaker 100 A 35 kA 480 Vthermal magnetic circuit breaker 100 A 65 kA 240 V
Fuse TypeH
Module TypeH-Frame
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductI-Line
Sustainable PackagingNo
Pep CodeENVPEP1410002EN
Package Weight(Lbs)14.52 kg
Warranty (In Months)18

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level
0 %
Environmental Disclosure
ENVPEP1410002EN
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1410002EN

General Attributes

Phase
3 phase
Range Of Product
I-Line
Product Or Component Typeplug-in unit

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
