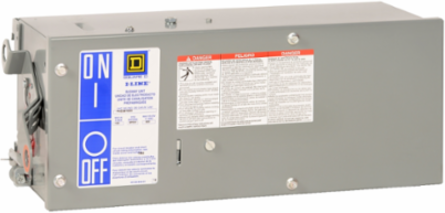

Square D PHJ36070GN Plug-in unit, I-Line Busway, H-frame, 70A, 3 phase, 4 wire, 600VAC, 25kA, ground, neutral

MPN: PHJ36070GN
PPN: SCH-PHJ36070GN
UNSPSC: 39131702

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Plug-in unit, I-Line Busway, H-frame, 70A, 3 phase, 4 wire, 600VAC, 25kA, ground, neutral

Documentation & Downloads

Specifications

Key Specifications

Module Type	H-Frame
Product Or Component Type	plug-in unit

Range Of Product	I-Line

Complementary

Disconnector Device Type	thermal magnetic circuit breaker 70 A 25 kA 600 V \|\| thermal magnetic circuit breaker 70 A 65 kA 480 V \|\| thermal magnetic circuit breaker 70 A 100 kA 240 V
Busbar Description	ground
Breaking Capacity Code	J
Wiring Configuration	4-wire

[Ue] Rated Operational Voltage	600 V AC 50/60 Hz \|\| 277/480 V AC 50/60 Hz
Level Or Class	class 5600
Fuse Type	H
Phase	3 phase

Environment

Product Certifications	CSA \|\| UL

Contractual warranty

Warranty	18 months

Offer Sustainability

China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP1410002EN
Eu Rohs Directive	Compliant with Exemptions
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Circularity Profile	N/A
Mercury Free	Yes
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
