Pass & Seymour L1620R 20A 480V NEMA L1620 4-Wire 3-Phase Receptacle, Black, Compact Design
- MPN: L1620R
- UPC: 785007162059
- PPN: P-S-L1620R
CAD
$82.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

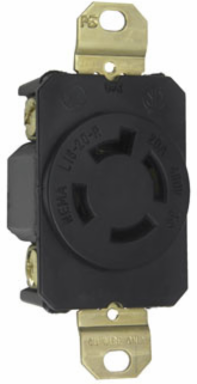

20A 480V NEMA L1620 4-Wire 3-Phase Receptacle, Black, Compact Design
Features
- Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
- .032 inch thick, brass, triple-wipe power contacts for lasting retention.
- One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
- Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
- Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
- Side and external screw-pressure-plate back wire capability.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.19 in
- Height
- 2.29 in
- Width
- 1.61 in
- Product Line
- Pass & Seymour
- Standard
- UL 498
- Number of Wires
- 4.0
- Indoor/Outdoor
- Indoor
- Wire Size
- 14 - 10 AWG
- Features
- Impact Resistant
- Application Sector
- Commercial
- Features
- Brass Mounting Strap
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
ColorBlack
FinishMatte
Country of OriginMexico
Amperage20.0 A
Voltage480.0 V
Outlet TypeLocking
Number of Poles3-Way
Wall Plate IncludedNo
Number of Receptacles1.0
Application SectorIndustrial
NEMA Configuration CodeL16-20R
Wire Connection TypeScrew Terminals
