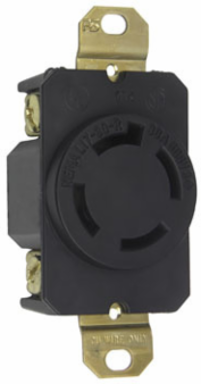

Pass & Seymour L1730R 30A NEMA L1730 Single Receptacle, 4-Wire, 600V, Compact Design
- MPN: L1730R
- UPC: 785007173055
- PPN: P-S-L1730R
CAD
$51.59
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
30A NEMA L1730 Single Receptacle, 4-Wire, 600V, Compact Design
Features
- Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
- Face color coding by voltage facilitates locating and mating of proper devices.
- One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
- Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
- Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
- Side and external screw-pressure-plate back wire capability.
- Accepts #14 - #10 AWG.
Documentation & Downloads
Specifications
Additional
| Amperage | 30 A |
|---|---|
| Phase | Three |
| Wire Size | 14-10 AWG |
| Wire Connection Type | Screw Terminals |
| Width | 1.61 in |
| Depth | 1.28 in |
| Material | Impact-resistant nylon, Brass |
| Application Sector | Commercial |
| Outlet Type | Locking |
| Country of Origin | Mexico |
| Standard | UL 498 |
| Voltage | 600 V |
|---|---|
| Number of Poles | 3-Way |
| Number of Wires | 4 |
| NEMA Configuration Code | L17-30R |
| Height | 2.42 in |
| Connection Location | Back and Side |
| Mounting Strap Material | Solid Brass |
| Indoor/Outdoor | Indoor |
| Color | Black |
| Product Line | Pass & Seymour |
