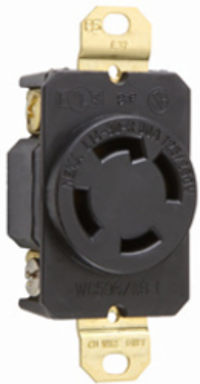

Pass & Seymour L1430R Turnlok 30A NEMA Receptacle, 125/250V, 4-Wire, Black, Compact Design

MPN: L1430R
UPC: 785007143058
PPN: P-S-L1430R

$45.16

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Turnlok 30A NEMA Receptacle, 125/250V, 4-Wire, Black, Compact Design

Features

Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
Face color coding by voltage facilitates locating and mating of proper devices.
One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
Side and external screw-pressure-plate back wire capability.
Accepts #14 - #10 AWG.

Documentation & Downloads

Specifications

Key Specifications

Depth	1.28 in
Color	Black
Product Line	Pass & Seymour
Country of Origin	Mexico
Standard	FEDSPEC
Number of Wires	4.0
Indoor/Outdoor	Indoor
Wire Size	14 - 10 AWG
Features	Impact Resistant
Application Sector	Industrial
Connection Location	Back and Side
Warranty Type	1-Year Limited Warranty

Height	2.42 in
Width	1.61 in
Amperage	30.0 A
Standard	UL 498
Voltage	125/250 V
Outlet Type	Locking
Number of Poles	3-Way
Wall Plate Included	No
Number of Receptacles	1.0
Features	Brass Mounting Strap
Wire Connection Type	Screw Terminals
Special Features	Locking Device, impact resistant

Turnlok 30A NEMA Receptacle, 125/250V, 4-Wire, Black, Compact Design
