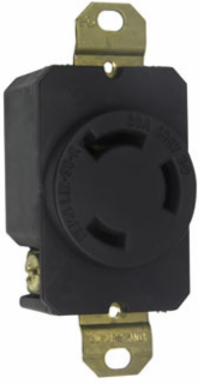

Pass & Seymour L1230R 30A NEMA L1230 Single Receptacle, 480V 3-Phase, Compact Black Design
- MPN: L1230R
- UPC: 785007123050
- PPN: P-S-L1230R
CAD
$131.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
30A NEMA L1230 Single Receptacle, 480V 3-Phase, Compact Black Design
Features
- Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
- Face color coding by voltage facilitates locating and mating of proper devices.
- One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
- Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
- Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
- Side and external screw-pressure-plate back wire capability.
- Accepts #14 - #10 AWG.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.28 in |
|---|---|
| Height | 2.42 in |
| Product Line | Pass & Seymour |
| Special Features | Turnlock, locking device, quick thread assembly, rounded back contour, impact & corrosion resistant, new design external cord grips |
| Amperage | 30.0 A |
| Voltage | 480.0 V |
| Outlet Type | Locking |
| Number of Poles | 3-Way |
| Wall Plate Included | No |
| Number of Receptacles | 1.0 |
| Features | Brass Mounting Strap |
| Connection Location | Back and Side |
| Warranty Type | 1-Year Limited Warranty |
| Color | Black |
|---|---|
| Width | 1.61 in |
| Country of Origin | Mexico |
| Phase | Three |
| Standard | UL 498 |
| Number of Wires | 3.0 |
| Indoor/Outdoor | Indoor |
| Wire Size | 14 - 10 AWG |
| Features | Impact Resistant |
| Application Sector | Commercial |
| NEMA Configuration Code | L12-30R |
| Wire Connection Type | Screw Terminals |
