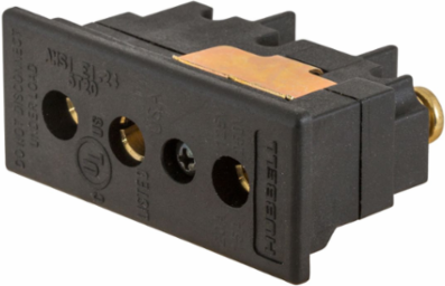

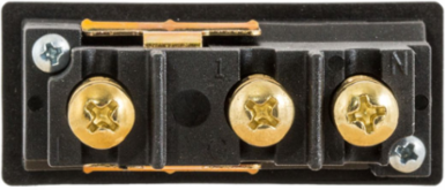

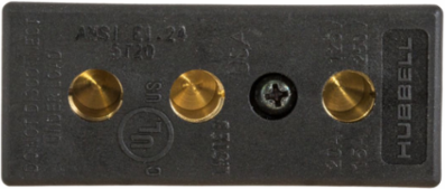

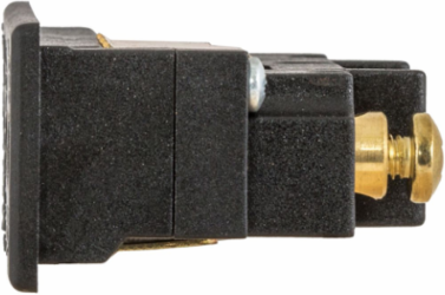

Hubbell Wiring Device-Kellems HBL20SPFR 20A Stage Pin Device, 125V Female Panel Mount, Black
- MPN: HBL20SPFR
- UPC: 783585539867
- PPN: HBL-HBL20SPFR
- UNSPSC: 39121402
CAD
$24.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
20 Amp 125V Black, Female Panel Mount, Double Set Screw Stage Pin Device
Features
- Comaptible with installed base, Impact Resistant
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 0.900 in
- Termination Type
- Double Set Screw
- Application
- Stage and Studio Lighting and Power Distribution
- Mounting
- Female Panel Mount
- Type
- Panel Mount
- Engineering Drawing 1 Display Text
- HBL20SPFR AutoCAD Drawing
- General Literature Asset 2 Display Text
- Entertainment Product Solution Guide
- Mounting Type
- Female Panel Mount
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A230
- BOX SIZE
- 9.400x4.100x13.250 (in)
- Carton - Number of Sub Packs
- 100
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585539867
- NAICS Code
- 335931A104
Current / Amperage Rating20 A
Industry Standard(s)UL Listed;CSA;ESTA
Amperage Rating20 A
ColorBlack
StandardUL Listed;CSA;ESTA
Voltage Rating Description125 V
General Literature Asset 1 Display TextStage Pin
ContactBrass
StyleDouble Set Screw
Description - Invoice20A STAGE PIN FEM RECEP, BLK
Harmonization Code8536698000
MSDS FlagNo
Base Unit of MeasureEA
Carton - Gross Weight per Pack12.950 lb.
Carton - Pack DescriptionCarton
Carton - Total Units100 EA
