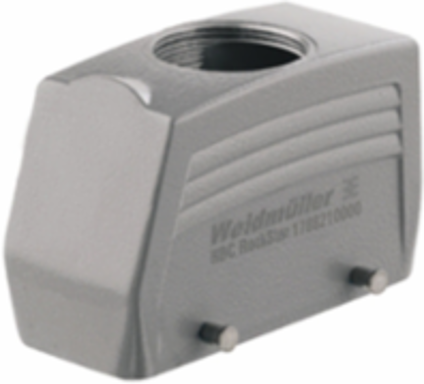

Weidmuller 1788210000 HDC 16B TOBU 1M25G
Weidmuller 1788210000 HDC 16B TOBU 1M25G
- MPN: 1788210000
- PPN: WDM-1788210000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$16.22/ EA
Description
HDC enclosures, Size: 6, Protection degree: IP65, Cable entry from top, Plug housing, Side-locking clamp on lower side, Standard, Size of cable entries: M 25
Specifications
General Data
- EMC housings
- No
- Material of locking element
- Stainless steel, rust-proof
- Surface finish
- Powder coating
Housing main materialdiecast aluminium
Protection degreeIP65
Tightening torque1.2 Nm
Approvals
- Approvals
- CE, cURus
- UL File Number Search
- E92202
ROHSConform
Dimensions And Weights
- Width
- 57.8 mm
- Height
- 61 mm
- Depth
- 93.3 mm
- Net weight
- 224 g
Width (inches)2.276 inch
Height (inches)2.402 inch
Depth (inches)3.673 inch
General Descriptions
- Size of cable entries
- M 25
- Size
- 6
Type of lockingSide-locking clamp
Protection degreeIP65

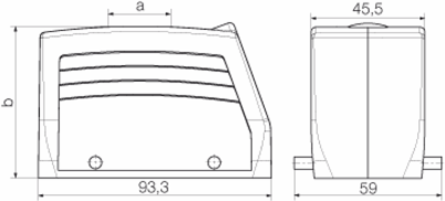

Dimensions
- Cable entry
- w. threading
- Total length housing
- 93.3 mm
Height of housing B61 mm
Width housing C43 mm
Version
- Cable entry
- w. threading
- Design
- Standard
- Design of locking system
- Side-locking clamp on lower side
- Number of cable entry on top
- 1
- Size
- 6
- Suitable for ModuPlug
- No
- Top part/bottom part/lid
- upper part
Clamp versionSide-locking clamp
Design of housingCable entry from top, Plug housing
Internal threadM 25
Number of cable entry sideways0
Size of cable entriesM 25
Tightening torque1.2 Nm
TypePlug
Material
- Colour
- grey
Classifications
- ETIM 6.0
- EC000437
- eClass 9.0
- 27-44-02-02
- eClass 10.0
- 27-44-02-02
ETIM 7.0EC000437
eClass 9.127-44-02-02
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Design
- Product family
- HDC enclosures
- Type
- Plug
Product typeEnclosures
Cable entryw. threading
Temperatures
- Limit temperature
- -40 °C ... 125 °C
