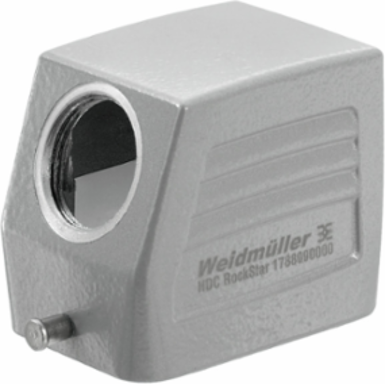

Weidmuller 1652520000 HDC 06B TSLU 1PG16G
Weidmuller 1652520000 HDC 06B TSLU 1PG16G
- MPN: 1652520000
- PPN: WDM-1652520000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$12.19/ EA
Description
HDC enclosures, Size: 3, Protection degree: IP65, Cable entry from side, Plug housing, End-locking clamp, lower side, Standard, Size of cable entries: PG 16
Specifications
General Data
- EMC housings
- No
- Material of locking element
- Stainless steel, rust-proof
- Surface finish
- Powder coating
Housing main materialdiecast aluminium
Protection degreeIP65
Tightening torque1.2 Nm
Approvals
- Approvals
- CE, cURus
- UL File Number Search
- E92202
ROHSConform
Dimensions And Weights
- Width
- 43 mm
- Height
- 52 mm
- Net weight
- 117 g
Width (inches)1.693 inch
Height (inches)2.047 inch
General Descriptions
- Size of cable entries
- PG 16
- Size
- 3
Type of lockingEnd-locking clamp
Protection degreeIP65

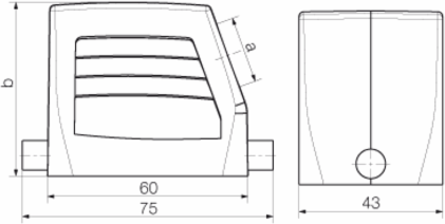

Dimensions
- Cable entry
- w. threading
- Total length housing
- 60 mm
Height of housing B52 mm
Width housing C43 mm
Version
- Cable entry
- w. threading
- Design
- Standard
- Design of locking system
- End-locking clamp, lower side
- Number of cable entry on top
- 0
- Size
- 3
- Suitable for ModuPlug
- No
- Top part/bottom part/lid
- upper part
Clamp versionEnd-locking clamp
Design of housingCable entry from side, Plug housing
Internal threadPG 16
Number of cable entry sideways1
Size of cable entriesPG 16
Tightening torque1.2 Nm
TypePlug
Material
- Colour
- grey
Classifications
- ETIM 6.0
- EC000437
- eClass 9.0
- 27-44-02-02
- eClass 10.0
- 27-44-02-02
ETIM 7.0EC000437
eClass 9.127-44-02-02
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Design
- Product family
- HDC enclosures
- Type
- Plug
Product typeEnclosures
Cable entryw. threading
Temperatures
- Limit temperature
- -40 °C ... 125 °C
