Weidmuller 1208600000 HDC 16B ABU
- MPN: 1208600000
- PPN: WDM-1208600000
CAD
$22.22
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

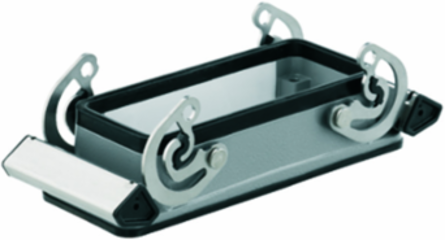

HDC enclosures, Size: 6, Protection degree: IP65, Open base, Side-locking clamp on lower side, Standard
Documentation & Downloads
Specifications
Additional
- Size
- 6
- Tightening Torque
- 1.2 Nm
- Temperature Range
- -40 C to 125 C
- Width
- 55 mm
- Height of Housing
- 29 mm
- Width Housing
- 43 mm
- Mounting Dimension - Width
- 103 mm
- Net Weight
- 159 g
- Material of Locking Element
- Stainless steel, rust-proof
- Surface Finish
- Powder coating
- Housing Design
- Bulkhead (feed-through) housing
- RoHS Compliance Status
- Compliant without exemption
- Color
- Grey (RAL 7035 BG 6)
- Product Family
- HDC enclosures
Protection DegreeIP65

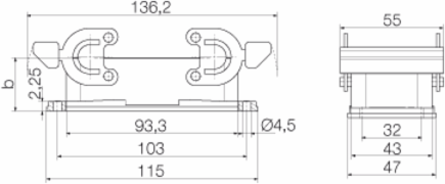

Hole Pitch Length103 mm
Total Length Housing93.3 mm
Height29 mm
Height of Base5.3 mm
Width Base47 mm
Mounting Dimension - Height32 mm
MaterialDiecast aluminium
SealingNBR
Design of Locking SystemSide-locking clamp on lower side
ApprovalsCE, cURus
REACH SVHCLead 7439-92-1, DIBP 84-69-5
Suitable for ModuPlugYes
