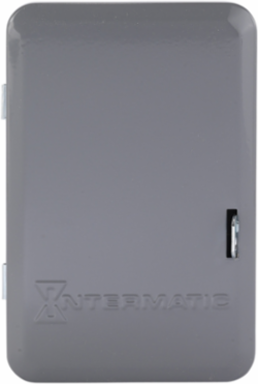

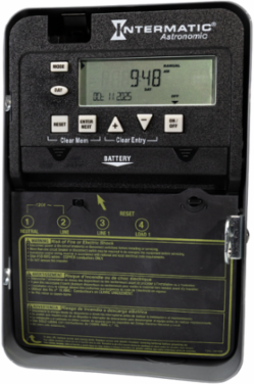

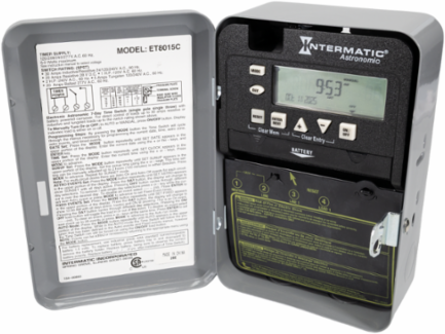

Intermatic ET8015C 7-Day 1-Circuit 120-277 VAC SPST Electronic Time Switch, Indoor Enclosure
- MPN: ET8015C
- UPC: 078275089754
- PPN: INT-ET8015C
- UNSPSC: 39122208
CAD
$396.13
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, up to 28 events total, and automatic daylight saving time corrections without the need of user interaction. These are 7-day timers with an astronomic feature.
Features

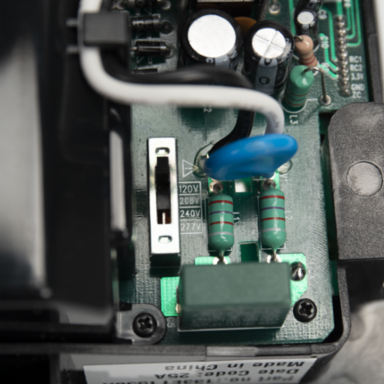

- Selector switch to determine input voltage between 120-277 VAC.
- Up to 28 events total.
- To-the-minute accuracy.
- Temporary override or permanent manual override.
- Automatic Daylight Saving Time adjustment.
- Astronomic models enable dusk-to-dawn scheduling.
Documentation & Downloads
Specifications
Additional
| Input Voltage | 120-277 VAC, 50/60 Hz |
|---|---|
| Electronic Ballast Load Rating | 1 A, 120-277 VAC |
| Resistive Load Rating | 20 A, 28 VDC; 30 A, 120/240 VAC |
| Motor Load Rating | 1 HP, 120 VAC; 2 HP, 240 VAC |
| Operation Mode | 7 day |
| Switch Type | SPST |
| Accuracy | To-the-minute |
| Astronomic Feature | Dusk-to-dawn scheduling |
| Battery Type | AAA |
| Maximum ON/OFF Operations | 14 |
| Temperature Range | -40 F to 104 F (-40 C to 40 C) |
| Height | 7.875 in |
| Wire Size Min | #14 AWG |
| Knockout Dimensions Bottom | 2 combination 1/2 in - 3/4 in |
| Color | Gray |
| Warranty Period | 1-Year limited |
| Tungsten Load Rating | 5 A, 120-240 VAC |
|---|---|
| Magnetic Ballast Load Rating | 20 A, 120-277 VAC |
| Inductive Load Rating | 30 A, 120/240 VAC |
| Maximum Power Consumption | 6 W |
| Number of Circuits | 1 |
| Events Capacity | 28 events |
| Daylight Savings Adjustment | Automatic |

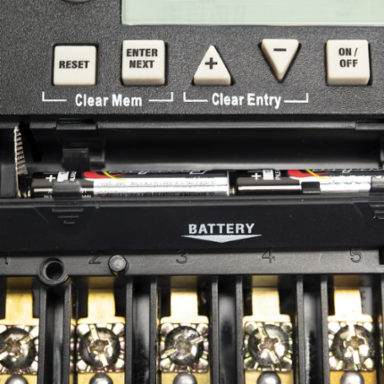

| Backup Type | Battery |
| Minimum ON/OFF Time | 1 min |
| Maximum ON/OFF Time | Indefinite |
| Width | 5.125 in |
| Depth | 3.437 in |
| Wire Size Max | #8 AWG |
| Knockout Dimensions Back | 1 combination 1/2 in - 3/4 in |
| Country of Origin | China |
| Enclosure Type | Indoor metal |
