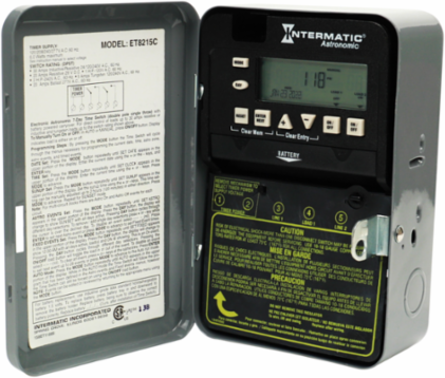

Intermatic ET8215C Astronomic 7-Day 2-Circuit Electronic Control, 120-277 VAC, Indoor Metal Enclosure
- MPN: ET8215C
- UPC: 078275089761
- PPN: INT-ET8215C
- UNSPSC: 39122208
CAD
$440.92
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, up to 28 events total, and automatic daylight saving time corrections without the need of user interaction. These are 7-day timers with an astronomic feature.
Features

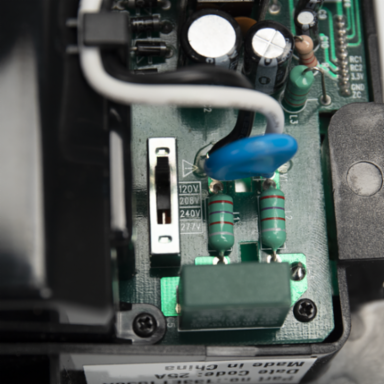

- Selector switch to determine input voltage between 120-277 VAC
- Up to 28 events total
- To-the-minute accuracy
- Temporary override or permanent manual override
- Automatic Daylight Saving Time adjustment
- Astronomic models enable dusk-to-dawn scheduling
Documentation & Downloads
Specifications
Additional
- Voltage
- 120-277 VAC, 50/60 Hz
- Minimum ON/OFF Time
- 1 min
- Setpoint Program Count
- 28
- Tungsten Load
- 5 A, 120-240 VAC
- Resistive Load
- 20 A, 28 VDC; 30 A, 120/240 VAC
- Motor Load
- 1 HP, 120 VAC; 2 HP, 240 VAC
- Operation Features
- Astronomic
- Power Consumption
- 6 W
- Wire Size Range
- #14 to #8 AWG
- Enclosure Type

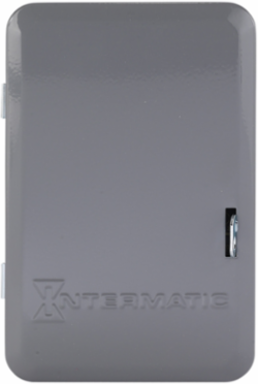

- Indoor metal
- Country of Origin
- China
- Compliance
- cCSAus, Title 20, Prop 65 Compliant
Number of Circuits2
Maximum ON/OFF Operations28
Magnetic Ballast Load20 A, 120-277 VAC
Electronic Ballast Load1 A, 120-277 VAC
Inductive Load30 A, 120/240 VAC
Operation Mode7 day

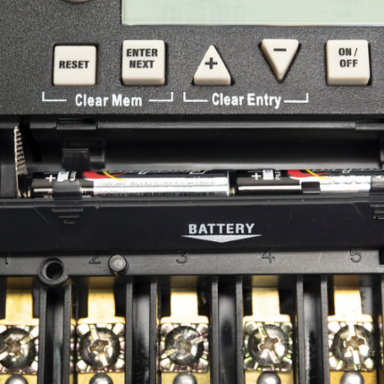

Battery BackupAAA battery, field serviceable
Dimensions (HxWxD)7.875 x 5.125 x 3.437 in
Temperature Range (Operation)-40 °F to 104 °F (-40 °C to 40 °C)
ColorGray
Warranty Period1-Year limited
